Question 1

SIMULATION
Task 15
You have been asked to enable logging so that the global operations team can view inv Realize Log
Insight that their Service Level Agreements are being met for all network traffic that is going in and
out of the NSX environment. This NSX environment is an Active / Active two Data Center design
utilizing N-VDS with BCP. You need to ensure successful logging for the production NSX-T
environment.
You need to:
Verify via putty with SSH that the administrator can connect to all NSX-Transport Nodes. You will use
the credentials identified in Putty (admin).
Verify that there is no current active logging enabled by reviewing that directory is empty -
/var/log/syslog-
Enable NSX Manager Cluster logging
Select multiple configuration choices that could be appropriate success criteria
Enable NSX Edge Node logging
Validate logs are generated on each selected appliance by reviewing the "/var/log/syslog”
Complete the requested task.
Notes: Passwords are contained in the user _ readme.txt. complete.
These task steps are dependent on one another. This task should take approximately 10 minutes to
complete.

Accepted Answer

Explanation: part of the Complete Solution and step by step instructions. Explanation: To enable logging for the production NSX-T environment, you need to follow these steps: Verify via putty with SSH that the administrator can connect to all NSX-Transport Nodes. You can use the credentials identified in Putty (admin) to log in to each transport node. For example, you can use the following command to connect to the sfo01w01en01 edge transport node: ssh admin@sfo01w01en01. You should see a welcome message and a prompt to enter commands. Verify that there is no current active logging enabled by reviewing that directory is empty - /var/log/syslog-. You can use the ls command to list the files in the /var/log/syslog directory. For example, you can use the following command to check the sfo01w01en01 edge transport node: ls /var/log/syslog. You should see an empty output if there is no active logging enabled. Enable NSX Manager Cluster logging. You can use the search_web("NSX Manager Cluster logging configuration") tool to find some information on how to configure remote logging for NSX Manager Cluster. One of the results is NSX-T Syslog Configuration Revisited - vDives, which provides the following steps: Navigate to System > Fabric > Profiles > Node Profiles then select All NSX Nodes then under Syslog Servers click +ADD Enter the IP or FQDN of the syslog server, the Port and Protocol and the desired Log Level then click ADD Select multiple configuration choices that could be appropriate success criteri a. You can use the search_web("NSX-T logging success criteria") tool to find some information on how to verify and troubleshoot logging for NSX-T. Some of the possible success criteria are: The syslog server receives log messages from all NSX nodes The log messages contain relevant information such as timestamp, hostname, facility, severity, message ID, and message content The log messages are formatted and filtered according to the configured settings The log messages are encrypted and authenticated if using secure protocols such as TLS or LI-TLS Enable NSX Edge Node logging. You can use the search_web("NSX Edge Node logging configuration") tool to find some information on how to configure remote logging for NSX Edge Node. One of the results is Configure Remote Logging - VMware Docs, which provides the following steps: Run the following command to configure a log server and the types of messages to send to the log server. Multiple facilities or message IDs can be specified as a comma delimited list, without spaces. set logging-server proto level [facility ] [messageid ] [serverca ] [clientca ] [certificate ] [key ] [structured-data ] Validate logs are generated on each selected appliance by reviewing the "/var/log/syslog”. You can use the cat or tail commands to view the contents of the /var/log/syslog file on each appliance. For example, you can use the following command to view the last 10 lines of the sfo01w01en01 edge transport node: tail -n 10 /var/log/syslog. You should see log messages similar to this: 2023-04-06T12:34:56+00:00 sfo01w01en01 user.info nsx-edge[1234]: 2023-04-06T12:34:56Z nsx- edge[1234]: INFO: [nsx@6876 comp="nsx-edge" subcomp="nsx-edge" level="INFO" security="False"] Message from nsx-edge You have successfully enabled logging for the production NSX-T environment.

Question 2

SIMULATION
Task 1
You are asked to prepare a VMware NSX-T Data Center ESXi compute cluster Infrastructure. You will
prepare two ESXi servers in a cluster for NSX-T overlay and VLAN use.
All configuration should be done using the NSX UI.
• NOTE: The configuration details in this task may not be presented to you in the order in which you
must complete them.
• Configure a new Transport Node profile and add one n-VDS switch. Ensure Uplink 1 and Uplink 2 of
your configuration use vmnic2 and vmnic3 on the host.
3V0-41.22 practice exam questions

Complete the requested task.
NOTE: Passwords are contained in the user_readme.txt. Configuration details may not be provided in
the correct sequential order. Steps to complete this task must be completed in the proper order.
Other tasks are dependent on the completion Of this task. You may want to move to other
tasks/steps while waiting for configuration changes to be applied. This task should take
approximately 20 minutes to complete.

Accepted Answer

Explanation: part of the Complete Solution and step by step instructions. Explanation: To prepare a VMware NSX-T Data Center ESXi compute cluster infrastructure, you need to follow these steps: Log in to the NSX Manager UI with admin credentials. The default URL is https:// . Navigate to System > Fabric > Profiles > Transport Node Profiles and click Add Profile. Enter a name and an optional description for the transport node profile. In the Host Switches section, click Set and select N-VDS as the host switch type. Enter a name for the N-VDS switch and select the mode as Standard or Enhanced Datapath, depending on your requirements. Select the transport zones that you want to associate with the N-VDS switch. You can select one overlay transport zone and one or more VLAN transport zones. Select an uplink profile from the drop-down menu or create a custom one by clicking New Uplink Profile. In the IP Assignment section, select Use IP Pool and choose an existing IP pool from the drop-down menu or create a new one by clicking New IP Pool. In the Physical NICs section, map the uplinks to the physical NICs on the host. For example, map Uplink 1 to vmnic2 and Uplink 2 to vmnic3. Click Apply and then click Save to create the transport node profile. Navigate to System > Fabric > Nodes > Host Transport Nodes and click Add Host Transport Node. Select vCenter Server as the compute manager and select the cluster that contains the two ESXi servers that you want to prepare for NSX-T overlay and VLAN use. Select the transport node profile that you created in the previous steps and click Next. Review the configuration summary and click Finish to start the preparation process. The preparation process may take some time to complete. You can monitor the progress and status of the host transport nodes on the Host Transport Nodes page. Once the preparation is complete, you will see two host transport nodes with a green status icon and a Connected state. You have successfully prepared a VMware NSX-T Data Center ESXi compute cluster infrastructure using a transport node profile.

Question 3

SIMULATION
Task 7
you are asked to create a custom QoS profile to prioritize the traffic on the phoenix-VLAN segment
and limit the rate of ingress traffic.
You need to:
• Create a custom QoS profile for the phoenix-VLAN using the following configuration detail:
3V0-41.22 practice exam questions

• Apply the profile on the ‘phoenix-VLAN' segment
Complete the requested task.
Notes: Passwords are contained in the user_readme.txt.
take approximately 5 minutes to complete.
Subsequent tasks may require the completion of this task. This task should

Accepted Answer

Explanation: part of the Complete Solution and step by step instructions. Explanation: To create a custom QoS profile to prioritize the traffic on the phoenix-VLAN segment and limit the rate of ingress traffic, you need to follow these steps: Log in to the NSX Manager UI with admin credentials. The default URL is https:// . Navigate to Networking > Segments > Switching Profiles and click Add Switching Profile. Select QoS as the profile type. Enter a name and an optional description for the QoS profile, such as phoenix-QoS. In the Mode section, select Untrusted as the mode from the drop-down menu. This will allow you to set a custom DSCP value for the outbound IP header of the traffic on the segment. In the Priority section, enter 46 as the DSCP value. This will mark the traffic with Expedited Forwarding (EF) per-hop behavior, which is typically used for high-priority applications such as voice or video. In the Class of Service section, enter 5 as the CoS value. This will map the DSCP value to a CoS value that can be used by VLAN-based logical ports or physical switches to prioritize the traffic. In the Ingress section, enter 1000000 as the Average Bandwidth in Kbps. This will limit the rate of inbound traffic from the VMs to the logical network to 1 Mbps. Optionally, you can also configure Peak Bandwidth and Burst Size settings for the ingress traffic, which will allow some burst traffic above the average bandwidth limit for a short duration. Click Save to create the QoS profile. Navigate to Networking > Segments and select the phoenix-VLAN segment that you want to apply the QoS profile to. Click Actions > Apply Profile and select phoenix-QoS as the switching profile that you want to apply to the segment. Click Apply to apply the profile to the segment. You have successfully created a custom QoS profile and applied it to the phoenix-VLAN segment.

Question 4

SIMULATION
Task 11
upon testing the newly configured distributed firewall policy for the Boston application. it has been
discovered that the Boston-Web virtual machines can be “pinged" via ICMP from the main console.
Corporate policy does not allow pings to the Boston VMs.
You need to:
• Troubleshoot ICMP traffic and make any necessary changes to the Boston application security
policy.
Complete the requested task.
Notes: Passwords are contained in the user _readme.txt. This task is dependent on Task 5.

Accepted Answer

Explanation: part of the Complete Solution and step by step instructions. Explanation: To troubleshoot ICMP traffic and make any necessary changes to the Boston application security policy, you need to follow these steps: Log in to the NSX Manager UI with admin credentials. The default URL is https:// . Navigate to Security > Distributed Firewall and select the firewall policy that applies to the Boston application. For example, select Boston-web-Application. Click Show IPSec Statistics and view the details of the firewall rule hits and logs. You can see which rules are matching the ICMP traffic and which actions are taken by the firewall. If you find that the ICMP traffic is allowed by a rule that is not intended for it, you can edit the rule and change the action to Drop or Reject. You can also modify the source, destination, or service criteria of the rule to make it more specific or exclude the ICMP traffic. If you find that the ICMP traffic is not matched by any rule, you can create a new rule and specify the action as Drop or Reject. You can also specify the source, destination, or service criteria of the rule to match only the ICMP traffic from the main console to the Boston web VMs. After making the changes, click Publish to apply the firewall policy. Verify that the ICMP traffic is blocked by pinging the Boston web VMs from the main console again. You should see a message saying “Request timed out” or “Destination unreachable”.

Question 5

SIMULATION
Task 13
You have been asked to configure the NSX backups for the environment so that if the NSX Manager
fails it can be restored with the same IP address to the original primary Data Center that is in an
Active / Standby configuration. Backups should be scheduled to run once every 24 hours as well as
when there are changes published to the NSX environment. Ensure that backups are completed on
their respective environment. Verify the backup file has been created on the SFTP server.
• Credentials needed to complete the task:
3V0-41.22 practice exam questions

You need to:
• Verify that an SFTP server is available on the network and obtain SFTP Fingerprint.
• Configure NSX Backups via NSX Appliance Backup
• Configure Scheduling Criteria
Backup Configuration Criteria
3V0-41.22 real exam questions

Complete the requested task.
Notes: Passwords are contained in the user_readme.txt. This task is not dependent on other tasks.
This task should take approximately 15 minutes to complete.

Accepted Answer

Explanation: part of the Complete Solution and step by step instructions. Explanation: To configure the NSX backups for the environment, you need to follow these steps: Verify that an SFTP server is available on the network and obtain SFTP fingerprint. You can use the search_web("SFTP server availability") tool to find some information on how to set up and check an SFTP server. You can also use the ssh-keyscan command to get the fingerprint of the SFTP server. For example, ssh-keyscan -t ecdsa sftp_server will return the ECDSA key of the sftp_server. You can compare this key with the one displayed on the NSX Manager UI when you configure the backup settings. Configure NSX Backups via NSX Appliance Backup. Log in to the NSX Manager UI with admin credentials. The default URL is https:// . Select System > Lifecycle Management > Backup & Restore. Click Edit under the SFTP Server label to configure your SFTP server. Enter the FQDN or IP address of the backup file server, such as 10.10.10.100. The protocol text box is already filled in. SFTP is the only supported protocol. Change the default port if necessary. The default TCP port is 22. In the Directory Path text box, enter the absolute directory path where the backups will be stored, such as /dat a. The directory must already exist and cannot be the root directory (/). Avoid using path drive letters or spaces in directory names; they are not supported. In the Passphrase text box, enter a passphrase that will be used to encrypt and decrypt the backup files, such as VMware1!. Click Save to create the backup configuration. Configure Scheduling Criteria. On the Backup & Restore page, click Edit under the Schedule label to configure your backup schedule. Select Enabled from the drop-down menu to enable scheduled backups. Select Daily from the Frequency drop-down menu to run backups once every 24 hours. Select a time from the Time drop-down menu to specify when the backup will start, such as 12:00 AM. Select Enabled from the Additional Backup Trigger drop-down menu to run backups when there are changes published to the NSX environment. Click Save to create the backup schedule. Verify that a backup file has been created on the SFTP server. On the Backup & Restore page, click Start Backup to run a manual backup and verify that it completes successfully. You should see a message saying “Backup completed successfully”. You can also check the status and details of your backups on this page, such as backup size, duration, and timestamp. Alternatively, you can log in to your SFTP server and check if there is a backup file in your specified directory path, such as /data.

Question 6

SIMULATION
Task 12
An issue with the Tampa web servers has been reported. You would like to replicate and redirect the
web traffic to a network monitoring tool outside Of the NSX-T environment to further analyze the
traffic.

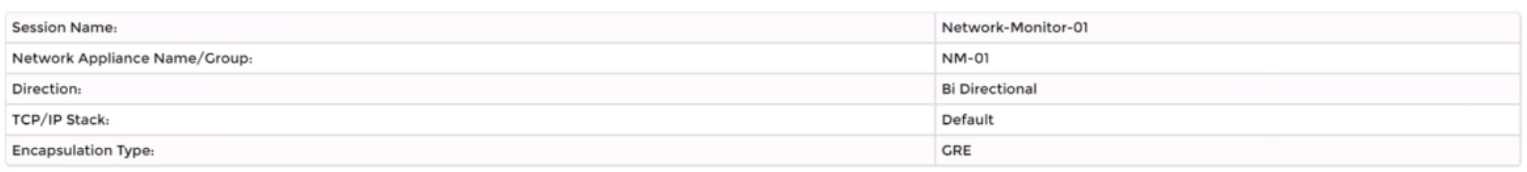

You are asked to configure traffic replication to the monitoring software for your Tampa web overlay
segments with bi-directional traffic using this detail:
3V0-41.22 practice exam questions

Complete the requested configuration.
Notes: Passwords are contained in the user_readme.txt. This task is not dependent on other tasks.
This task should take approximately 10 minutes to complete.

Accepted Answer

Explanation: part of the Complete Solution and step by step instructions. Explanation: To configure traffic replication to the monitoring software for your Tampa web overlay segments with bi-directional traffic, you need to follow these steps: Log in to the NSX Manager UI with admin credentials. The default URL is https:// . Navigate to Networking > Segments and select the Tampa web overlay segment that you want to replicate the traffic from. For example, select Web-01 segment that you created in Task 2. Click Port Mirroring > Set > Add Session and enter a name and an optional description for the port mirroring session. For example, enter Tampa-Web-Monitoring. In the Direction section, select Bi-directional as the direction from the drop-down menu. This will replicate both ingress and egress traffic from the source to the destination. In the Source section, click Set and select the VMs or logical ports that you want to use as the source of the traffic. For example, select Web-VM-01 and Web-VM-02 as the source VMs. Click Apply. In the Destination section, click Set and select Remote L3 SPAN as the destination type from the drop-down menu. This will allow you to replicate the traffic to a remote destination outside of the NSX-T environment. Enter the IP address of the destination device where you have installed the network monitoring software, such as 10.10.10.200. Select an existing service profile from the drop-down menu or create a new one by clicking New Service Profile. A service profile defines the encapsulation type and other parameters for the replicated traffic. Optionally, you can configure advanced settings such as TCP/IP stack, snap length, etc., for the port mirroring session. Click Save and then Close to create the port mirroring session. You have successfully configured traffic replication to the monitoring software for your Tampa web overlay segments with bi-directional traffic using NSX-T Manager UI.

Question 7

SIMULATION
Task 16
You are working to automate your NSX-T deployment and an automation engineer would like to
retrieve your BOP routing information from the API.
You need to:
• Run the GET call in the API using Postman
• Save output to the desktop to a text file called API.txt
Complete the requested task.
Notes: Passwords are contained in the user _ readme.txt. This task is not dependent on another. This
task should take approximately 5 minutes to complete.

Accepted Answer

Explanation: part of the Complete Solution and step by step instructions. Explanation: To run the GET call in the API using Postman and save the output to the desktop to a text file called API.txt, you need to follow these steps: Open Postman and create a new request tab. Select GET as the method from the drop-down menu. Enter the URL of the NSX-T Policy API endpoint for retrieving the BGP routing table, such as https:// /policy/api/v1/infra/tier-0s/vmc/routingtable?enforcement_point_path=/infra/sites/default/enforcement-points/vmc-enforcementpoint Click the Authorization tab and select Basic Auth as the type from the drop-down menu. Enter your NSX-T username and password in the Username and Password fields, such as admin and VMware1!. Click Send to execute the request and view the response in the Body tab. You should see a JSON object with the BGP routing table information, such as routes, next hops, prefixes, etc. Click Save Response and select Save to a file from the drop-down menu. Enter API.txt as the file name and choose Desktop as the location. Click Save to save the output to your desktop. You have successfully run the GET call in the API using Postman and saved the output to your desktop to a text file called API.txt. Thank you for your visit.

Question 8

SIMULATION
Task 8
You are tasked With troubleshooting the NSX IPSec VPN service Which has been reported down.
Verify the current NSX configuration is deployed and resolve any issues.
You need to:
• Verify the present configuration as provided below:
3V0-41.22 practice exam questions

Complete the requested task.
Notes: Passwords are contained in the user_readme.txt. This task is not dependent on another. This
task Should take approximately 15 minutes to complete.

Accepted Answer

Explanation: part of the Complete Solution and step by step instructions. Explanation: To troubleshoot the NSX IPSec VPN service that has been reported down, you need to follow these steps: Log in to the NSX Manager UI with admin credentials. The default URL is https:// . Navigate to Networking > VPN > IPSec VPN and select the IPSec VPN session that is down. You can identify the session by its name, local endpoint, remote endpoint, and status. Click Show IPSec Statistics and view the details of the IPSec VPN session failure. You can see the error message, the tunnel state, the IKE and ESP status, and the statistics of the traffic sent and received. Compare the configuration details of the IPSec VPN session with the expected configuration as provided below. Check for any discrepancies or errors in the parameters such as local and remote endpoints, local and remote networks, IKE and ESP profiles, etc. If you find any configuration errors, click Actions > Edit and modify the parameters accordingly. Click Save to apply the changes. If you do not find any configuration errors, check the connectivity and firewall rules between the local and remote endpoints. You can use ping or traceroute commands from the NSX Edge CLI to test the connectivity. You can also use show service ipsec command to check the status of IPSec VPN service on the NSX Edge. If you find any connectivity or firewall issues, resolve them by adjusting the network settings or firewall rules on the NSX Edge or the third-party device. After resolving the issues, verify that the IPSec VPN session is up and running by refreshing the IPSec VPN page on the NSX Manager UI. You can also use show service ipsec sp and show service ipsec sa commands on the NSX Edge CLI to check the status of security policy and security association for the IPSec VPN session.

Question 9

SIMULATION
Task 10
You have been notified by the Web Team that they cannot get to any northbound networks from
their Tampa web servers that are deployed on an NSX-T
network segment. The Tampa web VM's however can access each other.
You need to:
• Troubleshoot to find out why the Tampa web servers cannot communicate to any northbound
networks and resolve the issue.
Complete the requested task. TO verify your work. ping the Control Center @ 192.168.110.10
Notes: Passwords are contained in the user_readme.txt. This task is dependent on Task 4. Some exam
candidates may have already completed this task if they had done more than the minimum required
in Task 4. This task should take approximately 15 minutes to complete.

Accepted Answer

Explanation: part of the Complete Solution and step by step instructions. Explanation: To troubleshoot why the Tampa web servers cannot communicate to any northbound networks, you need to follow these steps: Log in to the NSX Manager UI with admin credentials. The default URL is https:// . Navigate to Networking > Tier-0 Gateway and select the tier-0 gateway that connects the NSX-T network segment to the northbound networks. For example, select T0-GW-01. Click Interfaces > Set and verify the configuration details of the interfaces. Check for any discrepancies or errors in the parameters such as IP address, subnet mask, MTU, etc. If you find any configuration errors, click Edit and modify the parameters accordingly. Click Save to apply the changes. If you do not find any configuration errors, check the connectivity and firewall rules between the tier- 0 gateway and the northbound networks. You can use ping or traceroute commands from the NSX Edge CLI or the vSphere Web Client to test the connectivity. You can also use show service router command to check the status of the routing service on the NSX Edge. If you find any connectivity or firewall issues, resolve them by adjusting the network settings or firewall rules on the NSX Edge or the northbound devices. After resolving the issues, verify that the Tampa web servers can communicate to any northbound networks by pinging the Control Center @ 192.168.110.10 from one of the web servers.

Question 10

SIMULATION Task 2 You are asked to deploy three Layer 2 overlay-backed segments to support a new 3-tier app and one Layer 2 VLAN-backed segment for support of a legacy application. The logical segments must block Server DHCP requests. Ensure three new overlay-backed segments and one new VLAN-backed logical segment are deployed to the RegionA01-COPMOI compute cluster. All configuration should be done utilizing the NSX UI. You need to: https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/VMware_3V0-41.22/page_5_img_1.jpg https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/VMware_3V0-41.22/page_5_img_2.jpg https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/VMware_3V0-41.22/page_5_img_3.jpg Complete the requested task. Notes: Passwords are contained in the user_readme.txt. Task 2 is dependent on the completion of Task 1. Other tasks are dependent on completion of this task. You may want to move to the next tasks while waiting for configuration changes to be applied. This task should take approximately 10 minutes to complete.

Accepted Answer

Explanation: part of the Complete Solution and step by step instructions. Explanation: To deploy three layer 2 overlay-backed segments and one layer 2 VLAN-backed segment, you need to follow these steps: Log in to the NSX Manager UI with admin credentials. The default URL is https:// . Navigate to Networking > Segments and click Add Segment. Enter a name for the segment, such as Web-01. Select Tier-1 as the connectivity option and choose an existing tier-1 gateway from the drop-down menu or create a new one by clicking New Tier-1 Gateway. Enter the gateway IP address of the subnet in a CIDR format, such as 192.168.10.1/24. Select an overlay transport zone from the drop-down menu, such as Overlay-TZ. Optionally, you can configure advanced settings such as DHCP, Metadata Proxy, MAC Discovery, or QoS for the segment by clicking Set Advanced Configs. Click Save to create the segment. Repeat steps 2 to 8 for the other two overlay-backed segments, such as App-01 and DB-01, with different subnet addresses, such as 192.168.20.1/24 and 192.168.30.1/24. To create a VLAN-backed segment, click Add Segment again and enter a name for the segment, such as Legacy-01. Select Tier-0 as the connectivity option and choose an existing tier-0 gateway from the drop-down menu or create a new one by clicking New Tier-0 Gateway. Enter the gateway IP address of the subnet in a CIDR format, such as 10.10.10.1/24. Select a VLAN transport zone from the drop-down menu, such as VLAN-TZ, and enter the VLAN ID for the segment, such as 100. Optionally, you can configure advanced settings such as DHCP, Metadata Proxy, MAC Discovery, or QoS for the segment by clicking Set Advanced Configs. Click Save to create the segment. To apply a segment security profile to block DHCP requests on the segments, navigate to Networking > Segments > Segment Profiles and click Add Segment Profile. Select Segment Security as the profile type and enter a name and an optional description for the profile. Toggle the Server Block and Server Block - IPv6 buttons to enable DHCP filtering for both IPv4 and IPv6 traffic on the segments that use this profile. Click Save to create the profile. Navigate to Networking > Segments and select the segments that you want to apply the profile to. Click Actions > Apply Profile and select the segment security profile that you created in step 18. Click Apply to apply the profile to the selected segments. You have successfully deployed three layer 2 overlay-backed segments and one layer 2 VLAN-backed segment with DHCP filtering using NSX-T Manager UI.
