Question 1

Which statement describes how the Capability element is used?

Accepted Answer

D

Explanation: According to the ArchiMate® 3.2 Specification1, a capability represents an ability that an active structure element, such as an organization, person, or system, possesses. Capabilities are typically aimed at achieving some goal or delivering value by realizing an outcome1. Therefore, the correct answer is D. To represent the ability that an active structure element possesses.

Question 2

Consider the diagram: https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/The_Open_Group_OGA-031/page_42_img_1.jpg (A diagram showing X, Y, and Z connected to Financial Processing using black diamonds.) Which of the following is the correct description of the diagram?

Accepted Answer

A

Explanation: Comprehensive and Detailed In-Depth The black diamond notation in ArchiMate represents a Composition relationship, which is used to indicate whole-part relationships between elements. Financial Processing is the whole (parent element). X, Y, and Z are sub-functions, meaning they are part of Financial Processing. Composition is a strong relationship, meaning the sub-functions (X, Y, and Z) do not exist independently outside Financial Processing. Analysis of Answer Choices: ✅ A. The financial processing function is composed of three sub-functions X, Y, and Z. → ✅ Correct Answer Composition relationships in ArchiMate indicate that one element is part of another in a strict, whole-part hierarchy. ArchiMate 3.2 Specification, Section 6.4.2, defines Composition as a structural relationship where the child elements belong strictly to the parent. Since Financial Processing contains X, Y, and Z as integral sub-functions, this is the correct choice. ✅ B. The financial processing function aggregates the three sub-functions X, Y, and Z. → ❌ Incorrect Aggregation is a weaker relationship in ArchiMate compared to Composition. In Aggregation, the sub-functions can exist independently, whereas in Composition, they cannot. ArchiMate 3.2 Specification, Section 6.4.1, states that Aggregation does not enforce a strict whole- part relationship like Composition does. ✅ C. The financial processing function is influenced by the three sub-functions X, Y, and Z. → ❌ Incorrect Influence relationships in ArchiMate do not represent whole-part structures. Influence is a motivation relationship, meaning it represents an impact or effect, not a structural dependency. ✅ D. The financial processing function is assigned the three sub-functions X, Y, and Z. → ❌ Incorrect Assignment relationships are used to indicate that a behavior element (e.g., function, process) is performed by an active structure element (e.g., role, actor, component). This diagram does not depict an assignment relationship; instead, it shows a structural composition. Final Answer: ✅ A. The financial processing function is composed of three sub-functions X, Y, and Z. Explanation: Reference: ArchiMate 3.2 Specification: Sections 6.4.2 (Composition), 6.4.1 (Aggregation), and 6.5 (Influence & Assignment). Archi User Guide: Modeling business functions and composition relationships.

Question 3

Consider the diagram: https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/The_Open_Group_OGA-031/page_33_img_1.jpg (A diagram showing a CEO connected to Sales Target and Customer Satisfaction, while a Customer is connected to Product Portfolio and Price. Customer Satisfaction appears to be a shared concern.) Which of the following answers best interprets the diagram?

Accepted Answer

B

Explanation: Comprehensive and Detailed In-Depth The diagram illustrates a Motivation viewpoint in ArchiMate, which is used to express stakeholder concerns, goals, and requirements. Customer Satisfaction is linked to both the CEO and the Customer, indicating that it is a shared concern. The CEO is concerned about Customer Satisfaction because it influences Sales Targets. The Customer is concerned about Customer Satisfaction because it is influenced by factors such as Product Portfolio and Price. The Customer Satisfaction element is not strictly assigned as a goal, requirement, or constraint to any single entity—it is a shared motivational element between stakeholders. Analysis of Answer Choices: ✅ A. Ensuring the Customer is satisfied is a constraint on the CEO achieving the sales target. → ❌ Incorrect. Constraints in ArchiMate are usually modeled explicitly using the "Constraint" element, which is missing from the diagram. ArchiMate 3.2 Specification, Section 6.2.4, states that constraints limit or influence goals but do not necessarily act as shared concerns. ✅ B. Customer satisfaction is a shared concern of the CEO and Customer. → ✅ Correct Answer The diagram clearly shows that both the CEO and the Customer are connected to the Customer Satisfaction element, indicating that it is a shared concern rather than a goal, requirement, or constraint. ArchiMate 3.2 Specification, Section 6.2.1, states that stakeholder concerns can be modeled as motivational elements that multiple actors relate to. ✅ C. The CEO has the goal to provide customer satisfaction to the Customer. → ❌ Incorrect. A goal is usually represented as a distinct "Goal" element in ArchiMate, which is not used here. Customer Satisfaction is positioned as a concern rather than a goal. ✅ D. The CEO has a requirement to provide customer satisfaction. → ❌ Incorrect. A requirement in ArchiMate is a more specific directive that is modeled separately, typically linked to business processes or services. ArchiMate 3.2 Specification, Section 6.2.3, states that requirements describe what must be achieved rather than being general concerns. Final Answer: ✅ B. Customer satisfaction is a shared concern of the CEO and Customer. Explanation: Reference: ArchiMate 3.2 Specification: Sections 6.2.1 (Stakeholder Concerns), 6.2.3 (Requirements), and 6.2.4 (Constraints). Archi User Guide: Modeling stakeholder concerns and motivation elements.

Question 4

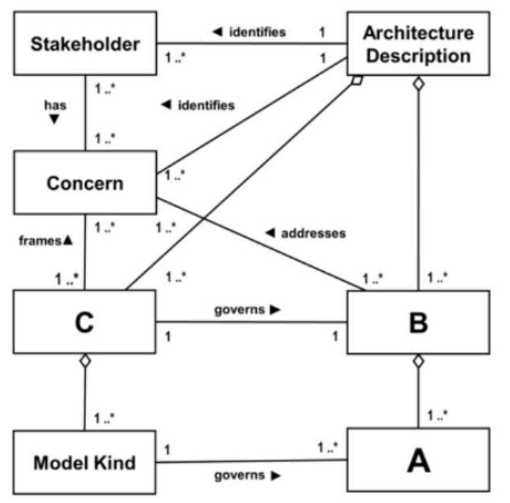

Consider the fragment of the conceptual model of an Architecture Description from ISO/IEC 42010: https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/The_Open_Group_OGA-031/page_40_img_1.jpg (A diagram showing relationships between Stakeholder, Concern, Architecture Description, Model Kind, and elements A & B.) Which answer correctly identifies A and B?

Accepted Answer

C

Explanation: Comprehensive and Detailed In-Depth The ISO/IEC 42010 standard defines concepts and relationships for modeling Architecture Descriptions. This standard structures architecture views, models, and viewpoints. Understanding the Diagram: Stakeholder identifies Concerns about the architecture. Concerns are addressed by B, which in turn governs A. Model Kind governs A, implying that A is an Architecture Model. Architecture Viewpoints frame concerns but are not depicted as governing A, indicating that B represents an Architecture View rather than a Viewpoint. This aligns with ISO/IEC 42010, which states: An Architecture View (B) addresses stakeholder concerns. An Architecture Model (A) represents an abstraction of the architecture and is governed by Model Kinds. Analysis of Answer Choices: ✅ A. A = Architecture, B = Architecture Viewpoint → ❌ Incorrect Architecture is too broad; the diagram specifically deals with models and views, not the entire architecture. Viewpoints govern concerns but do not directly govern models as shown in the diagram. ✅ B. A = Viewpoint Library, B = Architecture Rationale → ❌ Incorrect A is governed by Model Kind, which means it represents an actual model, not a library of viewpoints. B is linked to concerns and architecture descriptions, which matches an Architecture View, not a rationale. ✅ C. A = Architecture Model, B = Architecture View → ✅ Correct Answer ISO/IEC 42010 states that an Architecture View consists of one or more Architecture Models, fitting this diagram. The governing relationship from Model Kind to A confirms A is an Architecture Model. B is addressed by concerns, aligning with how Views address stakeholder concerns in the standard. ✅ D. A = Capability, B = Value Stream → ❌ Incorrect Capabilities and Value Streams belong to Business Architecture, not Architecture Descriptions in ISO/IEC 42010. The diagram follows ISO/IEC 42010 terminology, making this answer irrelevant. Final Answer: ✅ C. A = Architecture Model, B = Architecture View. Explanation: Reference: ISO/IEC 42010 Standard: Concepts of Architecture Description, Architecture Views, and Models. ArchiMate 3.2 Specification: Sections on Architectural Viewpoints and Models.

Question 5

Within the context of Enterprise Architecture, what are the layers that can be modeled with the ArchiMate language?

Accepted Answer

C

Explanation: Comprehensive and Detailed in Depth The ArchiMate framework consists of three core layers: Business Layer: Represents business processes, services, roles, and actors. Application Layer: Describes software applications and their interactions. Technology Layer: Represents infrastructure elements like servers, networks, and storage. The ArchiMate 3.2 Specification defines these three core layers as the primary structure of Enterprise Architecture modeling. Reference: Archi User Guide ArchiMate 3.2 Specification

Question 6

What Implementation and Migration element can be used to model sub-projects or tasks within a project, complete projects, programs, or project portfolios?

Accepted Answer

B

Explanation: Comprehensive and Detailed in Depth A Work Package is an Implementation and Migration element in ArchiMate that represents a series of actions designed to achieve a specific goal within a defined period. It is used to model sub- projects, tasks, projects, and programs as it captures the work needed to realize a specific aspect of an architecture. The ArchiMate 3.2 Specification explicitly defines a Work Package as an element that structures and organizes the necessary activities within a project, program, or portfolio. Reference: Archi User Guide ArchiMate 3.2 Specification

Question 7

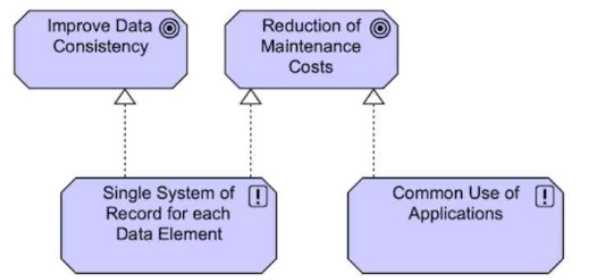

Consider the diagram, which represents information about a transformation project:
OGA-031 practice exam questions

(A diagram showing Improve Data Consistency and Reduction of Maintenance Costs at the top,
connected to Single System of Record for each Data Element and Common Use of Applications.)
Which of the following best describes this diagram?

Accepted Answer

A

Explanation: Comprehensive and Detailed In-Depth The diagram presents Principles and Goals, which are core elements in ArchiMate’s Motivation Layer. In ArchiMate 3.2, principles represent fundamental guidelines or constraints that influence architecture, while goals represent intended outcomes of an enterprise transformation. Understanding the Diagram: Improve Data Consistency and Reduction of Maintenance Costs are goals—they describe desirable future states of the enterprise. Single System of Record for each Data Element and Common Use of Applications are principles— they guide decision-making and architecture choices to help achieve the goals. The relationships between these elements indicate that the principles contribute to realizing the goals. Analysis of Answer Choices: ✅ A. Principles and the goals they realize. → ✅ Correct Answer Principles define fundamental rules that guide decision-making (e.g., Single System of Record for each Data Element). Goals represent desired business outcomes (e.g., Improve Data Consistency). ArchiMate 3.2 Specification, Section 6.2.2, defines how principles guide enterprise architecture to realize goals. ✅ B. Requirements and the meanings assigned. → ❌ Incorrect Requirements describe what needs to be implemented, whereas this diagram represents high-level principles and goals, not specific implementation needs. ArchiMate 3.2 Specification, Section 6.2.3, differentiates requirements from principles and goals. ✅ C. Goals and the assigned values. → ❌ Incorrect While the diagram includes goals, the lower elements are not values but principles that help achieve the goals. Values in ArchiMate typically represent high-level business benefits rather than architectural guidelines. ✅ D. Drivers and the associated outcomes. → ❌ Incorrect Drivers represent external forces or motivations (e.g., market trends, customer demands). This diagram does not include external drivers; it focuses on principles guiding internal changes. Final Answer: ✅ A. Principles and the goals they realize. Explanation: Reference: ArchiMate 3.2 Specification: Sections 6.2.2 (Principles) and 6.2.1 (Goals). Archi User Guide: Understanding the relationship between principles and goals in enterprise architecture.

Question 8

Complete the sentence. According to the top-level hierarchical structure of the ArchiMate Language, a model is considered to be __.

Accepted Answer

A

Explanation: Comprehensive and Detailed in Depth An ArchiMate model consists of a structured collection of concepts that represent enterprise architecture. These concepts include active structure, behavior, and passive structure elements, along with their relationships. A model is not just a set of elements or relationships, but rather a conceptual framework that represents an enterprise architecture holistically. The ArchiMate 3.2 Specification states that an ArchiMate model is a collection of interrelated concepts that define and describe enterprise architectures. Reference: Archi User Guide ArchiMate 3.2 Specification

Question 9

Complete the sentence. The ArchiMate standard provides a set of entities and relationships for

Accepted Answer

C

Explanation: Based on the ArchiMate 3 documents or objectives, the ArchiMate standard provides a set of entities and relationships for representing Architecture Description. Architecture Description is a work product used to express an architecture for a system-of-interest. The ArchiMate language is an open and independent modeling language for Enterprise Architecture that is supported by different tool vendors and consulting firms. Reference: The ArchiMate® Enterprise Architecture Modeling Language | The Open Group Website 1; ArchiMate® 3.2 Specification, Chapter 1 Introduction, Section 1.1 Objective 2.

Question 10

Complete following sentence: In the generic metamodel the main types of elements can be divided into

Accepted Answer

B

Explanation: Based on the ArchiMate 3 documents or objectives, the generic metamodel defines two main types of elements: structure and behavior. Structure elements represent the structural concepts that model the static construction or composition of concepts of the same or different types. Behavior elements represent units of activity performed by one or more active structure elements. Reference: ArchiMate® 3.2 Specification, Chapter 4 Generic Metamodel, Section 4.1 Behavior and Structure Elements 1; ArchiMate® 3.0.1 Specification - The Open Group 2.

Question 11

Refer to the exhibit. https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/The_Open_Group_OGA-031/page_32_img_1.jpg Consider the diagram showing a Claim Assessment and a Claim Settlement together with a relationship between them labeled "decision." What type of relationship is “decision”?

Accepted Answer

C

Explanation: Comprehensive and Detailed In-Depth The Trigger relationship in ArchiMate models causality between behaviors. It represents a cause- effect relationship where one behavior initiates or enables another behavior to occur. Understanding the Diagram: The Claim Assessment activity leads to or triggers the Claim Settlement activity. The relationship is labeled "decision," implying that the completion of Claim Assessment determines whether a Claim Settlement process should be initiated. In ArchiMate 3.2, a Trigger relationship is represented with a dashed arrow ( ⟶ ) as seen in the diagram. Analysis of Answer Choices: ✅ A. Flow → ❌ Incorrect Flow relationships represent the transfer of information, data, or resources rather than a causal effect. ArchiMate 3.2 Specification, Section 6.4.4, states that a Flow relationship is about communication or material flow, which is not the case here. ✅ B. Influence → ❌ Incorrect Influence relationships indicate that one element affects another in a non-deterministic way (e.g., policies, motivations, or strategies). ArchiMate 3.2 Specification, Section 6.4.5, states that Influence does not necessarily imply direct causation. Since "decision" suggests a clear causal dependency, Trigger is the better choice. ✅ C. Trigger → ✅ Correct Answer Trigger relationships explicitly show that one behavior initiates or causes another behavior. ArchiMate 3.2 Specification, Section 6.4.3, states that a Trigger relationship models a causal dependency between two behaviors. A Claim Assessment leading to a Claim Settlement fits this pattern perfectly. ✅ D. Access → ❌ Incorrect Access relationships describe how a behavioral element reads, writes, or manipulates an object (e.g., data access). ArchiMate 3.2 Specification, Section 6.4.7, states that Access is used for information retrieval or modification, which is not relevant here. Final Answer: ✅ C. Trigger Explanation: Reference: ArchiMate 3.2 Specification: Sections 6.4.3 (Trigger), 6.4.4 (Flow), 6.4.5 (Influence), and 6.4.7 (Access). Archi User Guide: Behavioral relationships and dependency modeling.

Question 12

What is the purpose of a Relationship Connector in the ArchiMate language?

Accepted Answer

C

Explanation: Comprehensive and Detailed in Depth A Relationship Connector is used in ArchiMate to connect multiple relationships of the same type. This allows complex architectures to be simplified by visually combining multiple relationships into a single point of reference. The ArchiMate 3.2 Specification defines Relationship Connectors as elements that allow two or more relationships to be connected, ensuring model clarity and simplicity. Reference: Archi User Guide ArchiMate 3.2 Specification

Question 13

Consider the top-level hierarchical structure of the ArchiMate Language shown below: https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/The_Open_Group_OGA-031/page_23_img_1.jpg What do A and B denote?

Accepted Answer

C

Explanation: According to the ArchiMate language structure, a concept is either an element or a relationship. An element is either a behavior element, a structure element, a motivation element, or a composite element. A and B in the diagram correspond to these concepts respectively. Reference: ArchiMate® 3.2 Specification, Chapter 3: Language Structure, Section 3.2 Top-Level Language Structure; ArchiMate® 3.0 Specification, Chapter 3: Language Structure, Section 3.2 Top- Level Language Structure.

Question 14

What is an external active structure element that represents a point of access where one or more services are provided to the environment?

Accepted Answer

C

Explanation: Comprehensive and Detailed in Depth An Interface in ArchiMate represents an access point through which elements interact with services. It can be a Business Interface, Application Interface, or Technology Interface. Interfaces serve as a boundary between internal and external systems, allowing controlled interactions. The ArchiMate 3.2 Specification explicitly states that interfaces expose services to the environment. Reference: Archi User Guide ArchiMate 3.2 Specification

Question 15

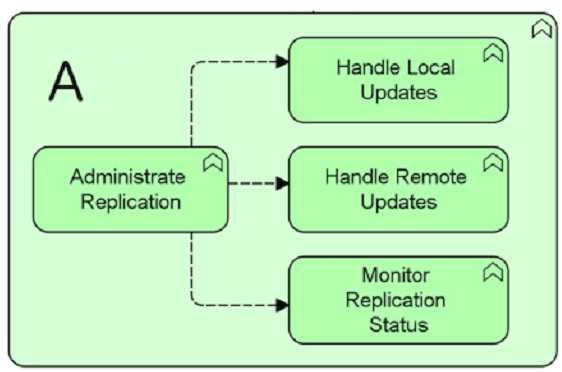

Consider the following diagram: https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/The_Open_Group_OGA-031/page_10_img_1.jpg What correctly describes this diagram?

Accepted Answer

D

Explanation: Based on the ArchiMate 3 documents or objectives, a technology function represents a collection of technology behavior that can be performed by a node. The diagram uses a composition relationship to indicate that technology function A consists of four other technology functions. The notation for a composition relationship is a solid line with a filled diamond at the end that points to the whole element. The diagram also uses an information flow relationship to indicate that information is exchanged from Administrate Replication to the other functions. The notation for an information flow relationship is a dashed line with an open arrowhead at the end that points to the direction of the flow. Reference: ArchiMate® 3.2 Specification, Chapter 4 Generic Metamodel, Section 4.1 Behavior and Structure Elements, Subsection 4.1.2 Structural Relationships 1; ArchiMate® 3.2 Specification, Chapter 11 Technology Layer, Section 11.2 Behavior Elements 1; ArchiMate® 3.2 Specification, Chapter 5 Relationships, Section 5.5 Other Relationships 1; ArchiMate Patterns – Technology Layer – General Geekery 2.
