Question 1

An integration procedure contains a Remote Action element that calls a method of an APEXclass. The
method requires two fields are input: Accountid and ProductId. The integration Procedure data JSON
contains the following nodes:
How should the Remote Action element be configured to pass the data correctly to the method?

Accepted Answer

A

Explanation: The Remote Action element must be configured to construct a new JSON object that matches the Apex method's required input parameters (AccountId and ProductId). This is achieved by using the Additional Input property to define the key/value pairs. Merge fields (%...%) are used to pull values from the Integration Procedure's data JSON, including the nested ProductId. The Send Only Additional Input checkbox is then checked to ensure that only this newly constructed data is sent to the Apex method, rather than the entire original data JSON, which would not match the method's signature.

Question 2

What OmniStudio tool pre-populates the data m a PDF used by an OmniScript?

Accepted Answer

D

Explanation: A DataRaptor Transform is the OmniStudio tool specifically designed to manipulate and restructure data. To pre-populate a PDF within an OmniScript, data is first retrieved (typically via a DataRaptor Extract) and then passed to a DataRaptor Transform. The Transform maps the source data fields to the specific field names required by the PDF template, creating a correctly formatted JSON output. This structured JSON is then used by the OmniScript's document generation element to populate the PDF fields accurately. The transformation step is crucial for ensuring the data aligns with the document's structure.

Question 3

A developer need to configure a calculation procedure to calculation a subtotal using two different
depending on whether the input Boolean variable is Customer is set to true or false.
How should a developer configure thecalculation procedure to conditionally execute the correct
formula?

Accepted Answer

B

Explanation: The most direct and standard method in OmniStudio Calculation Procedures to conditionally execute a step based on a Boolean variable is to use the Conditional Step property. The condition engine can directly evaluate a Boolean variable. For the "true" case, referencing the variable isCustomer is sufficient. For the "false" case, the NOT() function (e.g., NOT(isCustomer)) would be used. This approach is the most concise and efficient, avoiding redundant functions or explicit comparisons, and aligns with the declarative design of Calculation Procedures for creating clear, maintainable logic flows.

Question 4

A developer needs to limit the of a DataRaptorExtract to a maximum of one result. How should the developer configure this?

Accepted Answer

C

Explanation: A DataRaptor Extract is configured to retrieve data from Salesforce objects. To limit the number of records returned, the developer should use the LIMIT field within the filter configuration of the object on the 'Extract' tab. Entering '1' in this field adds a LIMIT 1 clause to the underlying SOQL query. This is the most direct and efficient method, as it restricts the data retrieved at the source (the database) rather than processing a larger dataset after extraction.

Question 5

A developer is troubleshooting an Integration Procedure with two elements: A Remote Action named FetchCart and a Response Action namedResponseCart. In Preview, what JSON node shows the data sent to the Response Action?

Accepted Answer

D

Explanation: In a Salesforce Industries Integration Procedure, the Preview mode generates a debug log in JSON format. Each element within the procedure produces an output that is added to the data JSON under a node named after that element. The Response Action element, named ResponseCart in this scenario, is responsible for defining the final data structure returned by the entire Integration Procedure. The output of this action, which is the data it processes and sends, is displayed in the debug log under the ResponseCart JSON node.

Question 6

In a calculation procedure, what is required for the output of a calculation step to be used in an aggregation step?

Accepted Answer

D

Explanation: In a Salesforce Industries Calculation Procedure, data is passed between steps via a JSON data structure. An aggregation step is specifically designed to operate on the outputs of previous steps. For an aggregation step to sum or process a value generated by a calculation step, that value must be explicitly declared as part of the calculation step's output. This makes the value accessible in the data JSON for subsequent steps, including the aggregation step which references it by its output name.

Question 7

A developer creates a DataRaptor Extract to retrieve data to pass to anexternal service. The external
service expects the field value to be integer. However, the DataRaptor is sending it as a string.
Which action can the developer take to fix this?

Accepted Answer

A

Explanation: The most direct and efficient method to ensure a field is output as a specific data type is by using the built-in functionality on the DataRaptor's Output tab. This tab allows developers to map extracted data to an output structure and explicitly define the data type for each field. By selecting 'Integer' from the Output Data Type dropdown for the relevant field, the DataRaptor will automatically cast the value, ensuring the external service receives it in the correct format. This approach is the standard and intended practice for type casting in a DataRaptor's output.

Question 8

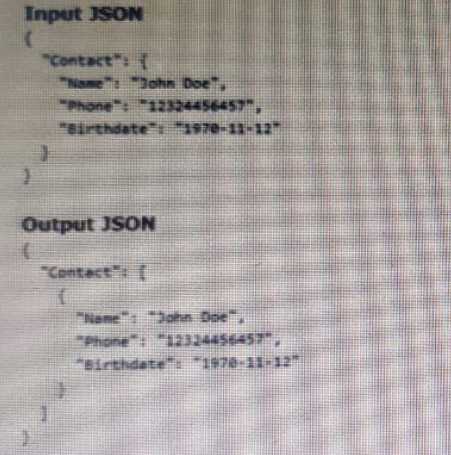

A developer needs to transform contact data into a JSON array. https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/OMS-435/page_5_img_1.jpg Given the input JSON shown above, what are two ways a developer could configure a DATARaptor transform to achieve theexpected Output JSON? Choose 2 answers

Accepted Answer

A, C

Explanation: The goal is to transform a single "Contact" JSON object into a JSON array containing that object. Option C is a direct and standard method. By setting the Input JSON Path to Contact, the Output JSON Path to Contact, and the Output Data Type to List, the DataRaptor is explicitly instructed to take the input object, wrap it in a list, and place it in the output. Option A describes another valid, multi-step method. A formula LIST(Contact) is created in the Formula tab. This generates a list containing the Contact object. The result of this formula can then be used as the input for a mapping in the Transform tab, mapping it to the Contact output path to achieve the desired structure.

Question 9

Refer to the exhibit. https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/OMS-435/page_31_img_1.jpg The card layout uses an integration Procedure as a data source. The cards use the layout data source. Which JSON data structure supports this card layout and follows best practices? A) https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/OMS-435/page_31_img_2.jpg B) https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/OMS-435/page_32_img_1.jpg C) https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/OMS-435/page_32_img_2.jpg

Accepted Answer

C

Explanation: The user interface displays a list of repeating cards, each representing a case. The most efficient and standard data structure to represent a list of similar items in JSON is a direct array of objects. Option C provides this structure, where the root element is an array [], and each element within it is a JSON object {} containing the fields for a single case. This format allows the card layout component to directly iterate over the array and render a card for each object, which is considered a best practice for OmniStudio data sources.

Question 10

A developer configure a Flexcard with a DataRaptor data source that uses the params.id as an. When
the developer clicks Views Data on the FlexCard, valid datadisplays. However, when the developer
previews the layout, the FlexCard does not display. What could cause this error?
Choose 2 answers

Accepted Answer

B, C

Explanation: The scenario describes a common issue where a FlexCard's data source works when tested in isolation ("View Data") but fails when the card is rendered in a layout preview. This points to errors in either the card's configuration for displaying data or the test data provided in the preview context. 1. (C) The attributes haven’t been configured to pass the data to the fields: The "View Data" function only shows the raw JSON response from the DataRaptor. It does not test the rendering of data onto the card's elements. A developer could confirm the data source works but have forgotten to map the data fields (e.g., {Name}) to the text elements on the card, causing the card to be blank in the preview. 2. (B) The RecordId in the Test Data Source settings is for the wrong record type: The layout preview uses a specific RecordId from its test settings. If this ID is for a different object type than the DataRaptor is designed to query (e.g., providing a Contact ID to a DataRaptor expecting an Account ID), the DataRaptor will find no matching record and return no data.

Question 11

A developer needs to build a DataRaptor Transform to send current weather to both an OmniScript Card Layout. Which of these samples would be valid for the Expected Output JSON? A) B) C) D)

Accepted Answer

D

Explanation: The requirement is to provide data to both an OmniScript and a Card Layout. Card Layouts are designed to display a list of records and therefore require a JSON array as their data source. Option D provides the data as an array ([...]) nested under a descriptive key ("weather"). This structure is ideal because the Card Layout can be configured to use the weather array as its records source. Simultaneously, it provides a well-organized, named node within the OmniScript's data JSON, which is a best practice for clarity and avoiding conflicts with other data.

Question 12

A customer sets up to LWC Omniscripts, one embedded into another. Account is set in a Set Values
element in the parent Omniscript.
The AccountId set in the parent Omniscript is used to another Set Values element ContextAccountid
in the embedded OmniScript. The embedded Omniscript is activated.
While previewing the OmniScript flow from the parent, it is found that Account is set correctly in the
parent OmniScript. However. ContextAccountId in the embedded OmniScript is not set with the
AccountId from parent Omniscript. On previewing the embedded OmniScript individually, it is found
that ContextAccountId isset correctly.
What is the reason for this? Refer to the exhibit below.
OMS-435 practice exam questions

Accepted Answer

C

Explanation: In LWC OmniScripts, data set in a parent OmniScript is not automatically passed to an embedded OmniScript if the data change occurs after the embedded component has already rendered. To facilitate this reactive data transfer, a publish-subscribe (pub/sub) model must be used. The "LWC PubSub Message" property on the parent's Set Values element is designed for this exact purpose. When checked, it publishes an event with the data payload. The embedded OmniScript can then listen for this event and update its data accordingly. The failure to set this flag is the direct cause of the ContextAccountId not being updated.

Question 13

A developer needs to retrieve data from an external system that stores policy dat
a. The external system supports REST APIs to access and update thepolicies. Due to the volume of
the policy data and peak hours of business, calls to the REST APIs sometimes take longer than
expected to respond.
The developer creates an Integration Procedure to retrieve the policy data for use in an OmniScript.
Given theexternal system's known performance issues, which two configurations should be used to
implement the call to the external system?
Choose 2 answers

Accepted Answer

A, C

Explanation: The scenario involves a two-level call: an OmniScript calls an Integration Procedure (IP), which in turn calls a slow external REST API. To prevent failures, timeouts must be managed at both levels. 1. Integration Procedure Level (HTTP Action): Setting the Timeout property on the HTTP Action (Option A) within the IP is crucial. This defines how long the IP will wait for the external system to respond before the callout itself times out, allowing for graceful error handling within the procedure. 2. OmniScript Level (Remote Action): The OmniScript's call to the IP is a remote action with a default timeout of 30,000 ms. Since the external system can be slow, this default may be insufficient. Configuring the remote action's timeout to a higher value, such as the maximum 120,000 ms (Option C), prevents the OmniScript from timing out while waiting for the IP to complete its long-running task.

Question 14

A developer is creating an OmniScript that provisions trial orgs to their customers. The following text block in the OmniScript uses a merge code to display the ID for the new trial org:

Welcome to Salesforce!

Your ID is %Details:Customer|0:ID%

During testing, the developer notices that the ID does not display. The data JSON is structured as shown below.

How should the developer correct the merge code in order for the ID to display?

Accepted Answer

C

Explanation: The provided JSON data structure shows that the Customer node is an array, identifiable by the square brackets []. In OmniScript, elements within a JSON array are accessed using a zero-based index with the pipe | character. Since the desired ID is within the first object of the Customer array, the correct index is 0. The standard syntax for a merge code is to enclose the path in double percent signs %%. Therefore, the correct merge code to access the ID is %%Details:Customer|0:ID%%.

Question 15

Refer to the exhibit. https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/OMS-435/page_38_img_1.jpg What JSON code correct represent the step in the OmniScript Structure panel shown? A) https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/OMS-435/page_39_img_1.jpg B) https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/OMS-435/page_39_img_2.jpg C) https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/OMS-435/page_40_img_1.jpg D) https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/OMS-435/page_40_img_2.jpg

Accepted Answer

C

Explanation: The question asks for the JSON code that represents the "Step" element shown in the OmniScript Structure panel. A Step in OmniScript is a container element represented by a JSON object. The correct representation must have a "type" property with the value "Step". The name given in the designer, "Step1", corresponds to the "name" property in the JSON. A Step also contains a bpe (business process elements) array for its child elements. Since the exhibit only shows the Step container itself with no child elements visible, the most accurate representation is one with an empty bpe array ([]). Option C perfectly matches this requirement.
