Question 1

Which one of the following is NOT a typical reason to require construction permits and the review of plans by local government?

Accepted Answer

B

Explanation: The primary purpose of the construction permit and plan review process is to enforce compliance with adopted building and fire codes. The fundamental goals of these codes are to ensure a minimum level of safety for building occupants and the public (community safety), provide for the safety of firefighters and other emergency personnel, and protect the building and adjacent properties from fire and structural hazards (property conservation). While a construction project's site plan may address traffic flow immediately around the site, "general traffic safety" for the broader community is typically the responsibility of transportation or public works departments, not a core function of the building/fire code plan review.

Question 2

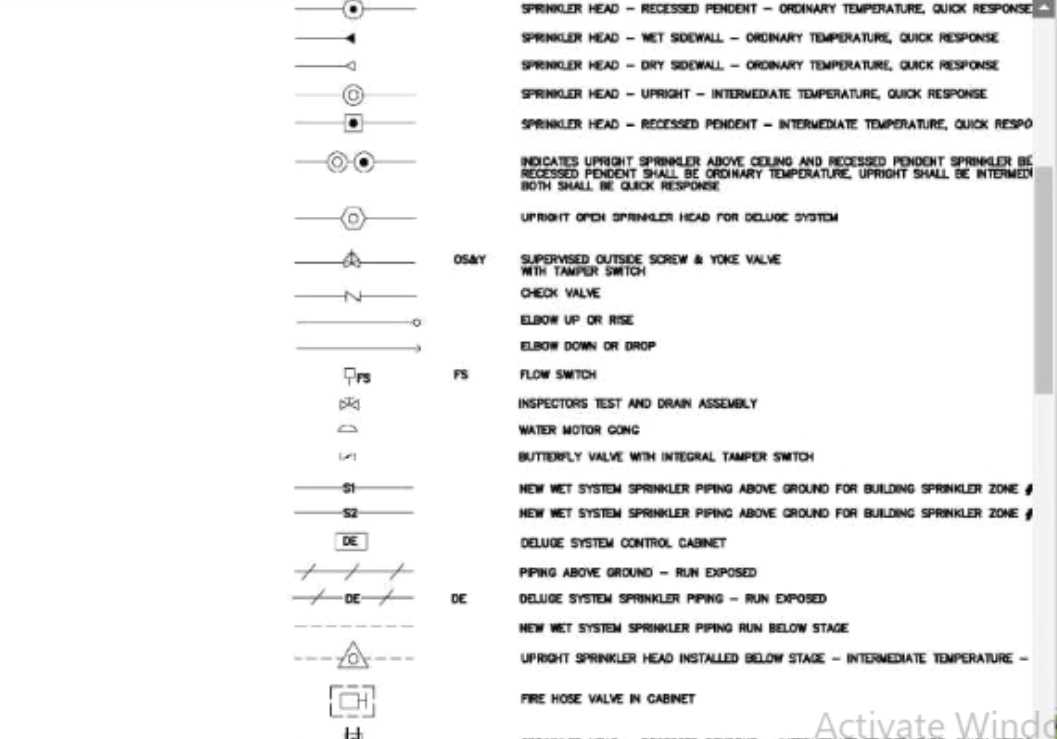

Exhibit. On plan sheet P01 fire protection symbols that are square with a solid dot indicate

Accepted Answer

A

Explanation: The provided exhibit is a legend from fire protection plan sheet P01. The legend is the definitive source for interpreting the symbols used on the associated drawings. By locating the symbol in question—a square with a solid dot in the center—within the legend, we can directly read its corresponding description. The legend explicitly defines this symbol as "SPRINKLER HEAD RECESSED PENDENT ORDINARY TEMPERATURE QUICK RESPONSE." Therefore, option A is the only correct answer as it is a direct transcription of the information provided in the plan's legend.

Question 3

Exhibit. What is the occupant load of the stage on plan A5?

Accepted Answer

B

Explanation: The occupant load is determined by dividing the net floor area by the occupant load factor specified in NFPA 101, Life Safety Code. First, calculate the area of the stage from the provided dimensions: 38 ft 8 in. by 22 ft 6 in. Area = (38 + 8/12 ft) × (22 + 6/12 ft) Area = 38.667 ft × 22.5 ft = 870 sq ft. According to NFPA 101, Table 7.3.1.2, the occupant load factor for a stage is 15 net sq ft per person. Occupant Load = 870 sq ft / 15 sq ft/person = 58 people.

Question 4

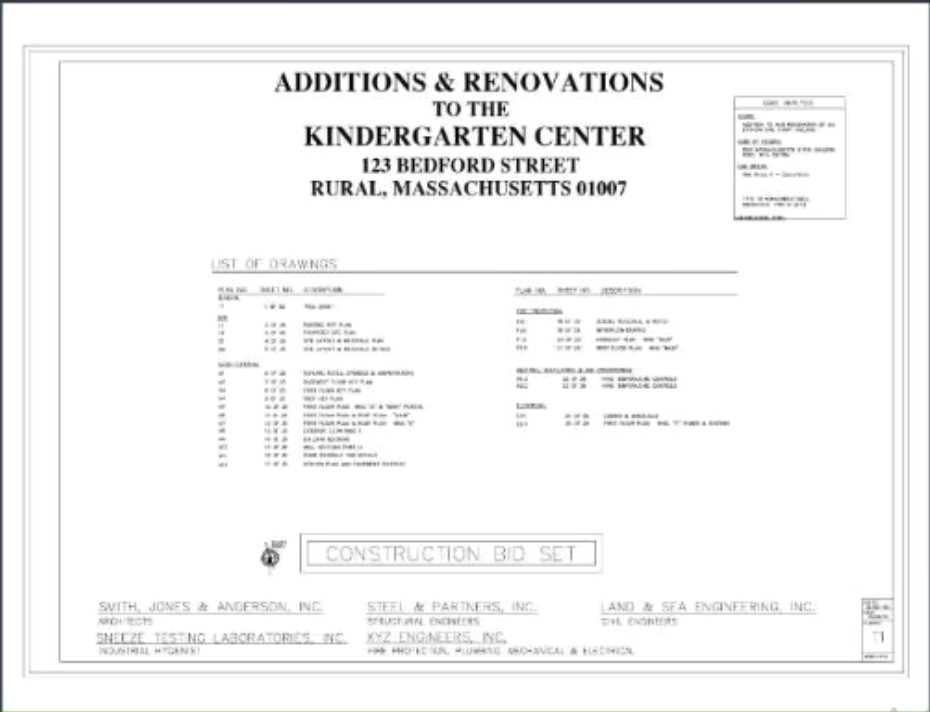

Exhibit. https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/NFPA_CFPE/page_41_img_1.jpg What is the construction type specified for the new addition for plan set Tl?

Accepted Answer

B

Explanation: The provided exhibit is a section of the general notes from an architectural plan set. Under the "CODE DATA" heading, the line item "CONSTRUCTION TYPE:" explicitly specifies "TYPE II (000)". This designation is based on NFPA 220, Standard on Types of Building Construction. Type II construction consists of noncombustible materials. The three digits in parentheses (000) represent the required fire-resistance rating in hours for exterior bearing walls, the structural frame, and floor construction, respectively. Therefore, Type II (000) signifies noncombustible construction with no required fire-resistance rating for these key elements.

Question 5

What is the maximum common path of travel permitted in a sprinklered educational occupancy?

Accepted Answer

C

Explanation: According to NFPA 101, Life Safety Code, the maximum common path of travel for both new and existing educational occupancies is 75 ft (23 m). However, an exception is permitted for buildings that are protected throughout by an approved, supervised automatic sprinkler system. In such sprinklered buildings, the maximum common path of travel is extended to 100 ft (30 m). The presence of sprinklers provides an increased level of life safety, justifying the longer travel distance before a choice of egress paths becomes available.

Question 6

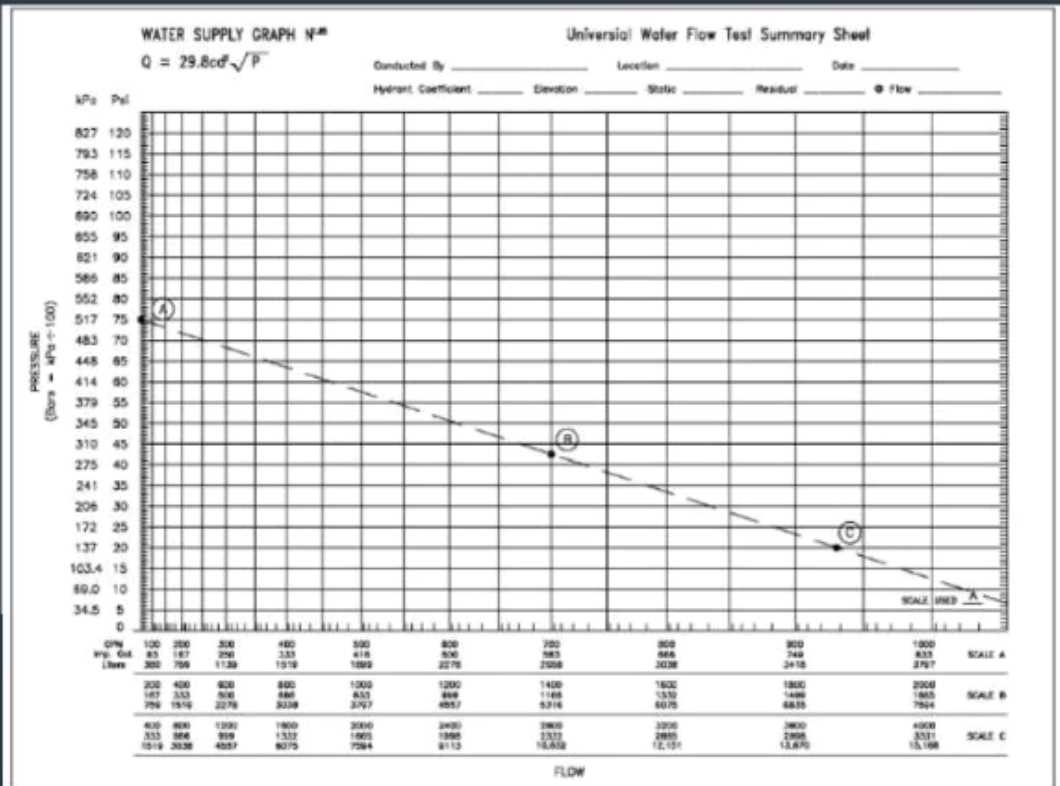

Exhibit. https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/NFPA_CFPE/page_18_img_1.jpg What does point "A" on the water supply graph represent?

Accepted Answer

D

Explanation: The provided exhibit is a standard water supply graph, which plots pressure (psi) on the vertical (Y) axis against water flow (gpm) on the horizontal (X) axis. Point "A" is located on the Y-axis, where the flow rate is zero. The pressure measured in a water supply system under no-flow conditions is, by definition, the static pressure. This point represents the maximum potential pressure available from the source before any water is discharged for fire protection or other uses. As water begins to flow, friction and elevation losses cause the pressure to decrease, as shown by the downward-sloping curve originating from point "A".

Question 7

A fire department access road shall be provided such that any portion of an unsprinklered facility is located no more than what maximum distance from the access road'-'

Accepted Answer

B

Explanation: NFPA 1, Fire Code, mandates that fire department access roads be positioned so that any portion of an exterior wall of the first story of a building is no more than 150 ft (46 m) from the road. This distance is measured by an approved route around the building's exterior. The 150 ft requirement is a baseline established to ensure that firefighting crews can effectively deploy handlines from their apparatus to any part of the building. This distance is specifically the maximum for facilities that are not protected by an automatic sprinkler system. For sprinklered buildings, this distance may be permitted to be increased by the Authority Having Jurisdiction (AHJ).

Question 8

What is a plat plan?

Accepted Answer

A

Explanation: A plat plan, often simply called a plat, is a survey map of a piece of land, drawn to scale, that legally defines how the land is divided. It is prepared by a licensed land surveyor and shows property lines, lot and block numbers, streets, alleys, utility easements, and other dedications. Once approved by the relevant government authority and recorded, the plat becomes a legal instrument that establishes the boundaries and configuration of individual parcels of land within a subdivision. It is the foundational document upon which civil and architectural site plans are developed.

Question 9

Which of the following is an architectural drawing that shows the overall project layout of building areas, driveways, fences, fire hydrants, and landscape features?

Accepted Answer

C

Explanation: A site plan, also known as a plot plan in some contexts, is a type of architectural drawing that provides a comprehensive, top-down view of a property. It illustrates how a building or group of buildings are situated on the lot. Critically for fire and life safety, it shows the overall project layout, including property lines, building footprints, driveways for fire apparatus access, locations of fire hydrants and other water supplies, fences, and major landscape features that could impact emergency operations. It is a fundamental document used by fire plan examiners to assess site accessibility and water supply adequacy.

Question 10

What is the occupant load for a high school computer lab with an area of 682 ft2 (63 m2) net? §§ Calculator

Accepted Answer

C

Explanation: The occupant load is calculated based on the function of the space as defined in NFPA 101, Life Safety Code. A high school computer lab is best classified as a "Classroom" under Educational Occupancies. According to NFPA 101, Table 7.3.1.2, the occupant load factor for a classroom is 20 net square feet per person. The calculation is as follows: Occupant Load = Net Area / Occupant Load Factor Occupant Load = 682 ft² / 20 ft²/person = 34.1 persons Per NFPA 101, Section 7.3.1.3, when calculations result in a fraction, the number must be rounded up to the next whole number. Therefore, the calculated occupant load is 35. Option (C) 34 is the closest answer, with the one-person difference likely attributable to the question being based on a slightly different area (e.g., 680 ft²).

Question 11

Where field conditions necessitate a substantial change in the approved plans,

Accepted Answer

A

Explanation: The Authority Having Jurisdiction (AHJ) is responsible for ensuring that installations comply with approved plans and applicable codes. When substantial changes are required due to unforeseen field conditions, the work must not deviate from the approved design without the AHJ's consent. The standard administrative procedure is for the applicant or contractor to submit revised drawings or amended construction documents for the AHJ's review and approval. This ensures the modified design maintains the required level of safety and compliance before the altered work proceeds.

Question 12

Exhibit. According to plan sheet F01, hydraulic calculations must be based on flow criteria obtained by new flow tests conducted by which one of the following?

Accepted Answer

C

Explanation: The provided exhibit, plan sheet F01, contains a specific note that dictates the requirements for the hydraulic calculations. Note 1 explicitly states, "HYDRAULIC CALCULATIONS SHALL BE BASED ON FLOW CRITERIA OBTAINED BY NEW FLOW TESTS CONDUCTED BY THE LOCAL FIRE DEPARTMENT." This is a direct instruction on the plan, making the local fire department the correct entity responsible for conducting the tests for this specific project. This requirement ensures that the water supply data used for the design is current, accurate, and verified by the Authority Having Jurisdiction (AHJ).

Question 13

Actuation of alarm notification appliances at the protected premises shall occur within how many seconds after the activation of an initiating device?

Accepted Answer

A

Explanation: NFPA 72, National Fire Alarm and Signaling Code, establishes the performance requirements for fire alarm systems. To ensure prompt occupant notification and initiation of evacuation, the code mandates a maximum system response time. The actuation of alarm notification appliances (e.g., horns, strobes) at the protected premises must occur within 10 seconds after an initiating device (e.g., smoke detector, manual pull station) is activated. This rapid response is a critical life safety provision to minimize the delay between the detection of a fire and the alerting of building occupants.

Question 14

Which one of the following is a right given to a board of appeals?

Accepted Answer

D

Explanation: The primary function of a board of appeals is to provide a mechanism for review when there are disputes over the interpretation of a code or when a party seeks to use an alternative method or material not explicitly prescribed by the code. The board is empowered to grant the use of such alternatives, provided they are proven to be at least equivalent to the code's requirements in terms of safety, fire resistance, and performance. This ensures that the intent of the code is met, even if the literal text is not followed due to practical difficulties or innovative solutions.

Question 15

The tops of wall mounted audible fire alarm notification appliances shall be a minimum of what height above the finished floor'?

Accepted Answer

C

Explanation: NFPA 72, National Fire Alarm and Signaling Code, explicitly states the mounting height requirements for audible notification appliances to ensure effective sound distribution. The code mandates that the tops of wall-mounted audible appliances be located not less than 90 inches (2.29 m) above the finished floor. This placement helps the sound waves travel over potential obstructions like furniture, cubicle walls, and stored materials, thereby improving audibility throughout the space. The appliance must also be mounted with its top at least 6 inches (152 mm) below the ceiling.
