Question 1

You are concerned about spoofed MAC addresses on your LAN. Which two Layer 2 security features should you enable to minimize this concern? (Choose two.)

Accepted Answer

Explanation: A is correct because dynamic ARP inspection (DAI) is a Layer 2 security feature that prevents ARP spoofing attacks. ARP spoofing is a technique that allows an attacker to send fake ARP messages to associate a spoofed MAC address with a legitimate IP address. This can result in traffic redirection, man-in-the-middle attacks, or denial-of-service attacks. DAI validates ARP packets by checking the source MAC address and IP address against a trusted database, which is usually built by DHCP snooping1. DAI discards any ARP packets that do not match the database or have invalid formats1. C is correct because DHCP snooping is a Layer 2 security feature that prevents DHCP spoofing attacks. DHCP spoofing is a technique that allows an attacker to act as a rogue DHCP server and offer fake IP addresses and other network parameters to unsuspecting clients. This can result in traffic redirection, man-in-the-middle attacks, or denial-of-service attacks. DHCP snooping filters DHCP messages by classifying switch ports as trusted or untrusted. Trusted ports are allowed to send and receive any DHCP messages, while untrusted ports are allowed to send only DHCP requests and receive only valid DHCP replies from trusted ports2. DHCP snooping also builds a database of MAC addresses, IP addresses, lease times, and binding types for each client2.

Question 2

Which statement is correct about graceful Routing Engine switchover (GRES)?

Accepted Answer

C

Explanation: The Graceful Routing Engine Switchover (GRES) feature in Junos OS enables a router with redundant Routing Engines to continue forwarding packets, even if one Routing Engine fails1. GRES preserves interface and kernel information, ensuring that traffic is not interrupted1. However, GRES does not preserve the control plane1. To preserve routing during a switchover, GRES must be combined with either Graceful Restart protocol extensions or Nonstop Active Routing (NSR)1. When GRES is combined with NSR, nearly 75 percent of line rate worth of traffic per Packet Forwarding Engine remains uninterrupted during GRES1. Any updates to the primary Routing Engine are replicated to the backup Routing Engine as soon as they occur1. Therefore, when GRES is combined with NSR, routing is preserved and the new master RE does not restart rpd1.

Question 3

Exhibit https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/Juniper_JN0-351/page_25_img_1.jpg What does the * indicate in the output shown in the exhibit?

Accepted Answer

C

Explanation: The exhibit shows the output of the command show vlans brief, which displays brief information about VLANs and their associated interfaces1. The output has four columns: Routing instance, VLAN name, Interfaces, and Tagging. The * symbol indicates that the interface is active, meaning that it is up and forwarding traffic1. This can be verified by the command show interfaces terse, which displays the status of the interfaces2.

Question 4

Exhibit. https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/Juniper_JN0-351/page_2_img_1.jpg Which router will become the OSPF BDR if all routers are powered on at the same time?

Accepted Answer

A

Explanation: OSPF DR/BDR election is a process that occurs on multi-access data links. It is intended to select two OSPF nodes: one to be acting as the Designated Router (DR), and another to be acting as the Backup Designated Router (BDR). The DR and BDR are responsible for generating network LSAs for the multi- access network and synchronizing the LSDB with other routers on the same network1. The DR/BDR election is based on two criteria: the OSPF priority and the router ID. The OSPF priority is a value between 0 and 255 that can be configured on each interface participating in OSPF. The default priority is 1. A priority of 0 means that the router will not participate in the election and will never become a DR or BDR. The router with the highest priority will become the DR, and the router with the second highest priority will become the BDR. If there is a tie in priority, then the router ID is used as a tie-breaker. The router ID is a 32-bit number that uniquely identifies each router in an OSPF domain. It can be manually configured or automatically derived from the highest IP address on a loopback interface or any active interface2. In this scenario, all routers have the same priority of 1, so the router ID will determine the outcome of the election. The router IDs are shown in the exhibit as RID values. The highest RID belongs to R4 (10.10.10.4), so R4 will become the DR. The second highest RID belongs to R3 (10.10.10.3), so R3 will become the BDR. Reference: 1: OSPF DR/BDR Election: Process, Configuration, and Tuning 2: OSPF Designated Router (DR) and Backup Designated Router (BDR)

Question 5

You are configuring an IS-IS IGP network and do not see the IS-IS adjacencies established. In this scenario, what are two reasons for this problem? (Choose two.)

Accepted Answer

Explanation: Option A suggests that the MTU is not at least 1492 bytes. This is correct because IS-IS requires a minimum MTU of 1492 bytes to establish adjacencies1. If the MTU is less than this, IS-IS adjacencies will not be established1. Option D suggests that the lo0 interface is not included as an IS-IS interface. This is also correct because the loopback interface (lo0) is typically used as the router ID in IS-IS1. If the loopback interface is not included in IS-IS, it could prevent IS-IS adjacencies from being established1. Therefore, options A and D are correct.

Question 6

Which two statements about BGP facilitate the prevention of routing loops between two autonomous systems? (Choose two.)

Accepted Answer

Explanation: BGP (Border Gateway Protocol) is a protocol designed to exchange routing and reachability information among autonomous systems (AS) on the internet1. Option A is correct. When an EBGP router advertises routes to its neighbors, it appends its AS number to the AS_PATH attribute1. This is a key mechanism in BGP to prevent routing loops1. Option C is correct. BGP has a built-in loop prevention mechanism whereby if a BGP router detects its own AS in the AS_PATH attribute, it will drop the prefix and will not continue to advertise it2. This helps to prevent routing loops2. Option B is incorrect. EBGP routers do not accept routes that contain their own AS number in the AS_PATH2. Instead, they drop such routes as part of the loop prevention mechanism2. Option D is incorrect. While it’s true that EBGP routers append their AS number when advertising routes, they do not prepend their AS number1. The term “prepend” in BGP usually refers to a technique used to influence path selection by artificially lengthening the AS_PATH3.

Question 7

Refer to the exhibit. https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/Juniper_JN0-351/page_30_img_1.jpg Referring to the output shown in the exhibit, which statement is correct?

Accepted Answer

B

Explanation: In OSPF, the state of the neighbor relationship is determined by the exchange of OSPF packets between routers1. The state “2Way” as shown in the exhibit indicates that bi-directional communication has been established between the two OSPF routers1. This is the normal state for a neighbor that is not the Designated Router (DR) or Backup Designated Router (BDR) on a broadcast, non-broadcast multi-access (NBMA), or point-to-multipoint network1. These neighbors are often referred to as "DRothers"1. Therefore, option B is correct.

Question 8

Which two statements are correct about tunnels? (Choose two.)

Accepted Answer

Explanation: A tunnel is a connection between two computer networks, in which data is sent from one network to another through an encrypted link. Tunnels are commonly used to secure data communications between two networks or to connect two networks that use different protocols. Option B is correct, because tunnel endpoints must have a valid route to the remote tunnel endpoint. A tunnel endpoint is the device that initiates or terminates a tunnel connection. For a tunnel to be established, both endpoints must be able to reach each other over the underlying network. This means that they must have a valid route to the IP address of the remote endpoint1. Option D is correct, because tunnels add additional overhead to packet size. Tunnels work by encapsulating packets: wrapping packets inside of other packets. This means that the original packet becomes the payload of the surrounding packet, and the surrounding packet has its own header and trailer. The header and trailer of the surrounding packet add extra bytes to the packet size, which is called overhead. Overhead can reduce the efficiency and performance of a network, as it consumes more bandwidth and processing power2. Option A is incorrect, because BFD can be used to monitor tunnels. BFD is a protocol that can be used to quickly detect failures in the forwarding path between two adjacent routers or switches. BFD can be integrated with various routing protocols and link aggregation protocols to provide faster convergence and fault recovery. BFD can also be used to monitor the connectivity of tunnels, such as GRE, IPsec, or MPLS. Option C is incorrect, because IP-IP tunnels are stateless. IP-IP tunnels are a type of tunnels that use IP as both the encapsulating and encapsulated protocol. IP-IP tunnels are simple and easy to configure, but they do not provide any security or authentication features. IP-IP tunnels are stateless, which means that they do not keep track of the state or status of the tunnel connection. Stateless tunnels do not require any signaling or negotiation between the endpoints, but they also do not provide any error detection or recovery mechanisms. Reference: 1: What is Tunneling? | Tunneling in Networking 2: What Is Tunnel In Networking, Its Types, And Its Benefits? : [Configuring Bidirectional Forwarding Detection] : [IP-IP Tunneling]

Question 9

Which statement is correct about the IS-IS ISO NET address?

Accepted Answer

B

Explanation: An ISO NET address is a type of network address used by the IS-IS routing protocol. It identifies a point of connection to the network, such as a router interface, and is also called a Network Service Access Point (NSAP)1. An ISO NET address consists of three parts: an area ID, a system ID, and a selector2. The area ID identifies the IS-IS area to which the device belongs. The system ID uniquely identifies the device within the area. The selector identifies a specific service or function on the device, such as routing or management2. An ISO NET address must be unique for each device in the network, because it is used by IS-IS to establish adjacencies, exchange routing information, and compute shortest paths2. If two devices have the same ISO NET address, they will not be able to communicate with each other or with other devices in the network. Therefore, it is important to assign different ISO NET addresses to each device in the network.

Question 10

You want to ensure traffic is routed through a GRE tunnel. In this scenario, which two statements will satisfy this requirement? (Choose two.)

Accepted Answer

Explanation: Option A is correct. For traffic to be sent through a GRE tunnel, there must be a route that directs the traffic into the tunnel. This is typically accomplished through the use of a static route or a dynamic routing protocol. Option B is correct. All intermediary devices must have a route to the tunnel endpoints34. In real- world scenarios, the tunnel endpoints for a tunnel going over the Internet must have globally reachable internet addresses. Otherwise, intermediate routers in the Internet cannot forward the tunneled packets.

Question 11

You are an operator for a network running 1S-IS. Two routers are failing to form an adjacency. What are two reasons for this problem? (Choose two.)

Accepted Answer

Explanation: The two reasons for the failure to form an adjacency in a network running IS-IS could be: B) There is no configured ISO address on any IS-IS interface. IS-IS requires each router interface to have an ISO address configured. Without this address, the routers cannot form an adjacency1. D) The family iso configuration is missing from the adjacency interface. The ‘family iso’ configuration is essential for IS-IS to function correctly. If this configuration is missing from the adjacency interface, it could prevent the formation of an adjacency1. These explanations are based on the Enterprise Routing and Switching Specialist (JNCIS-ENT) documents and learning resources available at Juniper Networks23.

Question 12

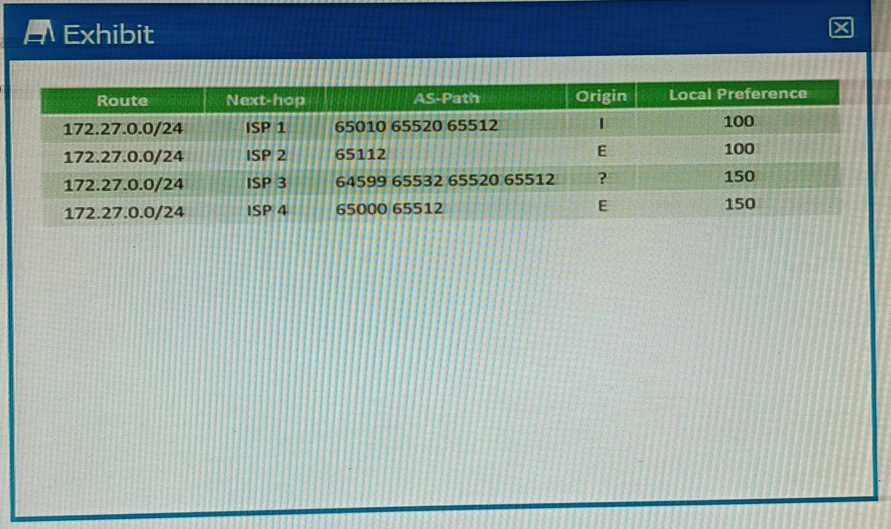

Exhibit https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/Juniper_JN0-351/page_28_img_1.jpg You are receiving the BGP route shown in the exhibit from four different upstream ISPs. Referring to the exhibit, which ISP will be selected as the active path?

Accepted Answer

C

Explanation: In BGP, the path selection process is based on a set of attributes1. The process starts by preferring the path with the highest weight, then the highest local preference, then the locally originated routes, and so on1. If all these attributes are the same, then it prefers the path with the shortest AS path1. Referring to the exhibit, all four ISPs have the same weight, local preference, and origin1. However, ISP 4 has the shortest AS path1. Therefore, ISP 4 will be selected as the active path. So, option C is correct.

Question 13

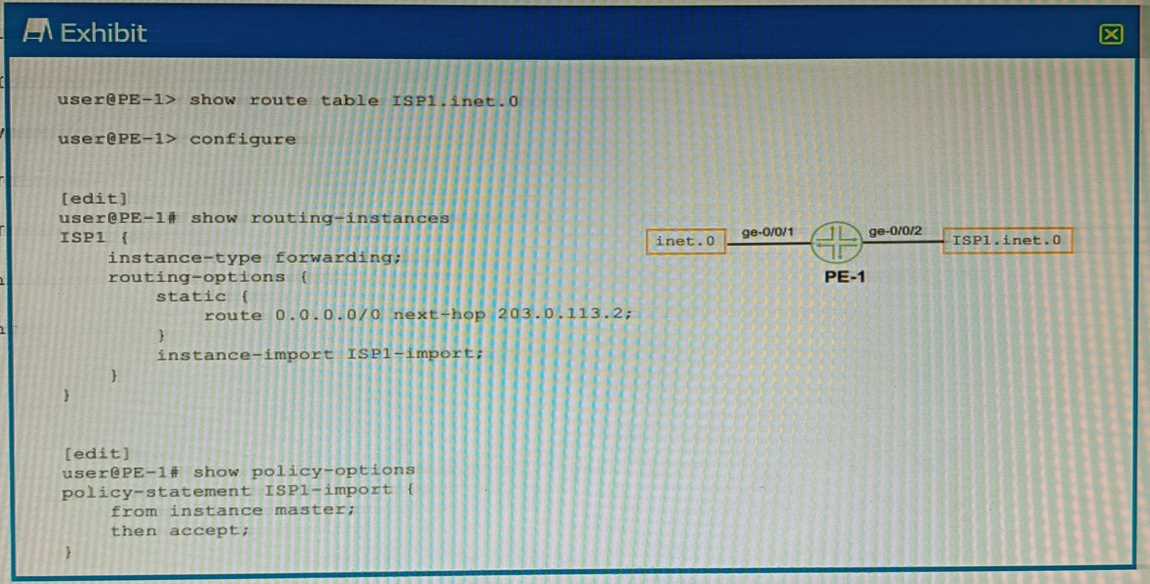

Exhibit. https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/Juniper_JN0-351/page_6_img_1.jpg The ispi _ inet. 0 route table has currently no routes in it. What will happen when you commit the configuration shown on the exhibit?

Accepted Answer

B

Explanation: The configuration shown in the exhibit is an example of a routing instance of type virtual-router. A routing instance is a collection of routing tables, interfaces, and routing protocol parameters that create a separate routing domain on a Juniper device1. A virtual-router routing instance allows administrators to divide a device into multiple independent virtual routers, each with its own routing table2. The configuration also includes a rib-group statement, which is used to import routes from one routing table to another. A rib-group consists of an import-rib statement, which specifies the source routing table, and an export-rib statement, which specifies the destination routing table. In this case, the rib-group name is inet-to-ispi, and the import-rib statement specifies inet.0 as the source routing table. The export-rib statement specifies ispi.inet.0 as the destination routing table. This means that the routes from inet.0 will be imported into ispi.inet.0. Therefore, the correct answer is B. The inet.0 route table will be imported into the ispi.inet.0 route table. Reference: 1: Routing Instances Overview 2: Virtual Routing Instances : [rib-group (Routing Options)]

Question 14

What is a purpose of using a spanning tree protocol?

Accepted Answer

B

Explanation: A broadcast storm is a network condition where a large number of broadcast packets are sent and received by multiple devices, causing congestion and performance degradation1. A broadcast storm can occur when there are loops in the network topology, meaning that there are multiple paths between two devices2. A spanning tree protocol is a network protocol that prevents loops from being formed when switches or bridges are interconnected via multiple paths. It does this by creating a logical tree structure that spans all the devices in the network, and disabling or blocking the links that are not part of the tree, leaving a single active path between any two devices3. By eliminating loops, a spanning tree protocol also eliminates broadcast storms, as broadcast packets will not be forwarded endlessly along the looped paths. Instead, broadcast packets will be sent only along the tree structure, reaching each device once and avoiding congestion3.

Question 15

You are receiving multiple BGP routes from an upstream neighbor and only want to advertise a single
summarized prefix to your internal OSPF neighbors. This route should only be advertised when you
are receiving these BGP routes from this neighbor.
In this scenario, which type of route should you create?

Accepted Answer

A

Explanation: In this scenario, you should create an aggregate route1. Aggregate routes are used for advertising summarized network prefixes1. They help minimize the number of routing tables in an IP network by consolidating selected multiple routes into a single route advertisement1. This approach is in contrast to non-aggregation routing, in which every routing table contains a unique entry for each route1. Therefore, option A is correct. Options B, C, and D are not correct because: Static route using the resolve feature: This type of route uses the resolve feature to install a static route in the routing table only if a specific condition is met1. However, it does not provide the capability to summarize multiple routes into a single prefix. Generate route: This type of route generates a route that is always present in the routing table and can be used to summarize routes. However, it does not have the capability to only advertise the route when specific BGP routes are being received from a neighbor1. Static route using qualified next hops: This type of route allows for the specification of multiple next- hop addresses for a static route1. However, it does not provide the capability to summarize multiple routes into a single prefix. Thank you for your visit.
