Question 1

DRAG DROP Drag and drop the items to complete the jsxapi script. Not all options are used. https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/300-920/page_47_img_1.jpg

Accepted Answer

Explanation: This script uses the jsxapi library to send a command to a Cisco collaboration device. const xapi = require('jsxapi'); imports the necessary library. xapi.command(...) is the correct method in the jsxapi library to execute a command, such as an HttpClient Get . The .command method returns a JavaScript Promise. The .catch() function is the standard way to handle errors or rejections in a Promise chain. Finally, printHttp(...) is the function call that executes the defined script logic.

Question 2

DRAG DROP Drag and drop the expressions from the right onto the Webex JavaScript SDK code on the left to create a Webex Teams space, add a person to the space, and send a welcome message. Not all expressions are used. https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/300-920/page_25_img_1.jpg

Accepted Answer

Explanation: This JavaScript code uses the Webex SDK to perform three sequential actions chained together with promises. First, webex.rooms.create() is called to create a new Webex space named 'Q3 Budget Planning'. The promise then resolves, passing the new room object as x . webex.memberships.create() is called to add a person to that room, using x.id to specify the roomId . Finally, after the membership is created, webex.messages.create() is called to post a message into the same room. The roomId for this action is retrieved from the membership object y created in the previous step.

Question 3

DRAG DROP Drag and drop the methods from the left into the correct order of execution on the right to use webex-js-sdk in a browser to call and share the screen with another Webex user. Not all methods are used. https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/300-920/page_35_img_1.jpg

Accepted Answer

Explanation: This sequence represents the logical flow for initiating a call with screen sharing using the Webex Browser JS SDK's Meetings API. webex.meetings.create(destination) : This is the first step. It creates a meeting object, which acts as the container for all information and media related to the call. meeting.addMedia(mediaOptions) : Before connecting, the local media streams (audio, video, and the initial screen share) must be prepared and added to the meeting object. This method handles that preparation. meeting.getMediaStreams() : After the meeting is connected (via the meeting.join() method, which is implicitly assumed to occur after step 2), this method is used to retrieve the local and remote media stream objects, typically for rendering them in HTML <video> elements. meeting.updateShare(shareOptions) : This method is used during an active meeting to change the screen sharing source, for example, switching from one application window to another. It logically follows the initial setup and stream rendering. The methods webex.call() and call.getMediaStreams() belong to a different, simpler API within the SDK that is not typically used for calls involving advanced media control like screen sharing.

Question 4

DRAG DROP Drag and drop the components to create the authentication header used for the Webex Teams API. Not all options are used. https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/300-920/page_2_img_1.jpg

Accepted Answer

Explanation: The Webex API utilizes the OAuth 2.0 framework, which employs Bearer tokens for authentication. The standard for presenting a Bearer token in an API request is to use the Authorization HTTP header. The value of this header is constructed with the scheme name, Bearer , followed by a space and the access token itself. The term Authentication is a general concept, but Authorization is the specific IETF-defined header name (RFC 7235). The Basic scheme is a different method that uses a Base64-encoded username:password string, which is not applicable here as a long-form token is provided.

Question 5

DRAG DROP Drag and drop the code onto the snippet to construct the JavaScript to create a new meeting with the Webex Meetings XML API. Options can be used more than once. https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/300-920/page_7_img_1.jpg

Accepted Answer

Explanation: The logic for the answer remains the same but applied to all three locations. HTTP Method : To create a new resource (a meeting, in this case), the standard and required HTTP method is POST . The http.request function in Node.js takes an options object to specify this. Authentication Tag : The Webex XML API uses a element for authentication. The correct XML tag for a temporary authentication token is . XML Syntax : Basic XML syntax requires that every opening tag (e.g., ) has a corresponding closing tag ( ). Therefore, the same sessionTicket string must be used for both the opening and closing tags.

Question 6

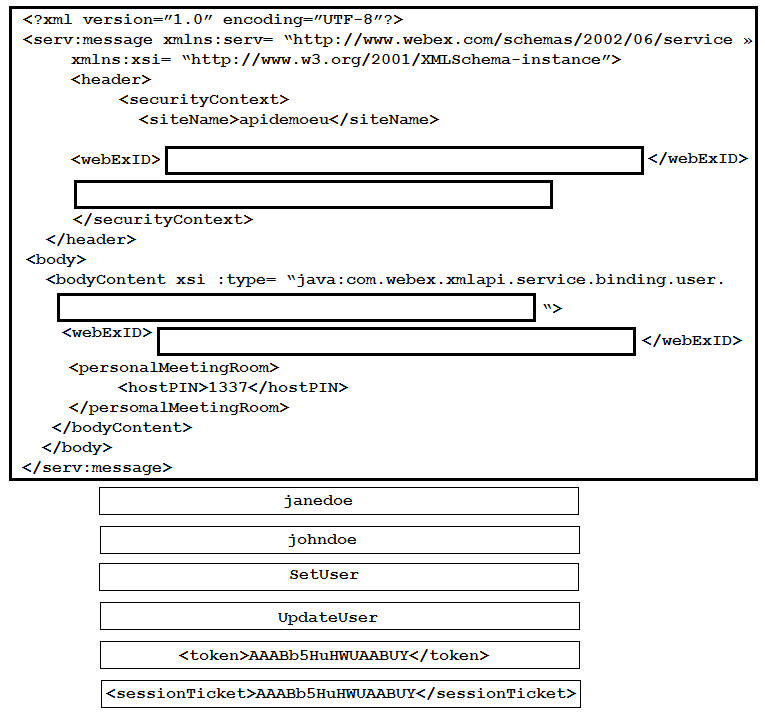

DRAG DROP Drag and drop the code snippets onto the exhibit to create a valid Webex Meetings API request allowing Jane (an admin) to reset John’s PMR pin. Not all options are used. https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/300-920/page_16_img_1.jpg

Accepted Answer

Explanation: This XML request uses the Webex Meetings XML API to modify a user's settings. The

section identifies the requester . The inside the must be the administrator performing the action, which is janedoe . Authentication is provided via a . The section defines the operation. The bodyContent element's xsi:type attribute specifies the API call being made, which is SetUser for updating user information. The inside the body identifies the target user whose settings are being changed, which is johndoe . The nested element specifies the exact attribute (the hostPIN ) to be updated.

Question 7

DRAG DROP Drag and drop the code to complete the JavaScript code snippet to create a meeting using the Webex Meetings XML API. Options may be used more than once. https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/300-920/page_22_img_1.jpg

Accepted Answer

Explanation: sessionTicket : The element requires authentication. The value provided ( AAABb6... ) is a long, base64-encoded string characteristic of a session ticket obtained via a previous handshake, rather than a plaintext . meetingPassword : Within the element of a CreateMeeting request, the element used to define the password for the meeting is specified as . 1/13/2020 16:00:00 : The Webex XML API requires date/time values in the specific format MM/DD/YYYY HH:MM:SS . The option "Jan 24..." is not a valid format for this XML schema. text/xml : The DOMParser().parseFromString() method requires a MIME type argument. Since the Webex service being called is the XMLService and returns XML data, 'text/xml' is the correct MIME type to parse the response string into an XML Document. result : The standard response to a Webex XML API request (such as CreateMeeting ) includes a

containing a block. The immediate success or failure status is located in the element (e.g., SUCCESS ).

Question 8

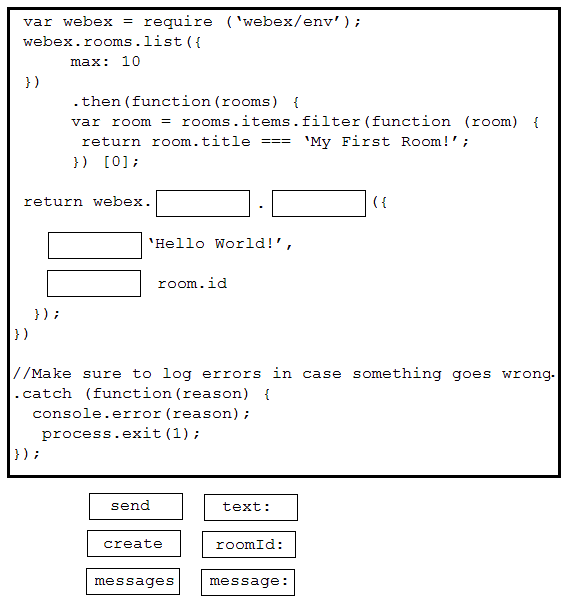

DRAG DROP Drag and drop the code to complete the snippet that sends a message to the room “My First Room” using the Browser SDK. Not all options are used. https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/300-920/page_51_img_1.jpg

Accepted Answer

Explanation: The goal is to send a message to a specific room using the Webex Browser SDK. According to the official SDK documentation, the webex.messages object contains the methods for interacting with message resources. The create() method is used to post a new message to a room. This method accepts a message object as its argument, which must specify the destination room via the roomId property and the message content via the text (for plain text) or markdown property. The code snippet correctly retrieves the room.id and provides the string 'Hello World!' as the content.

Question 9

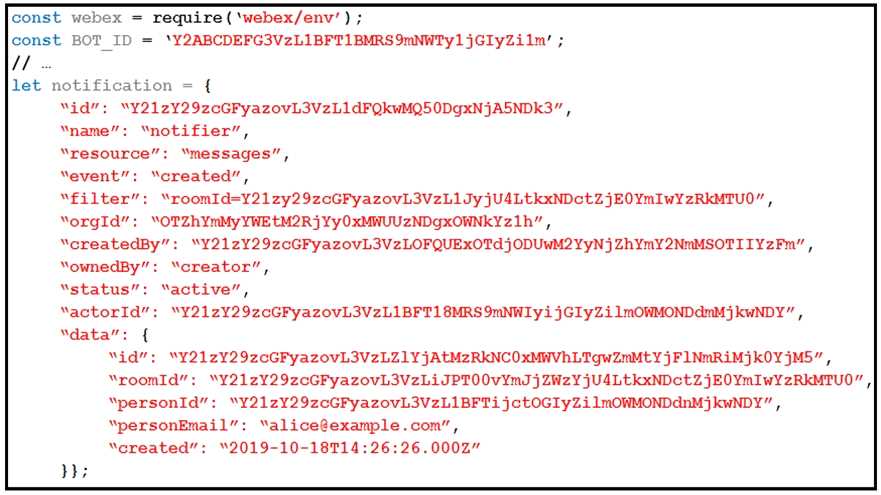

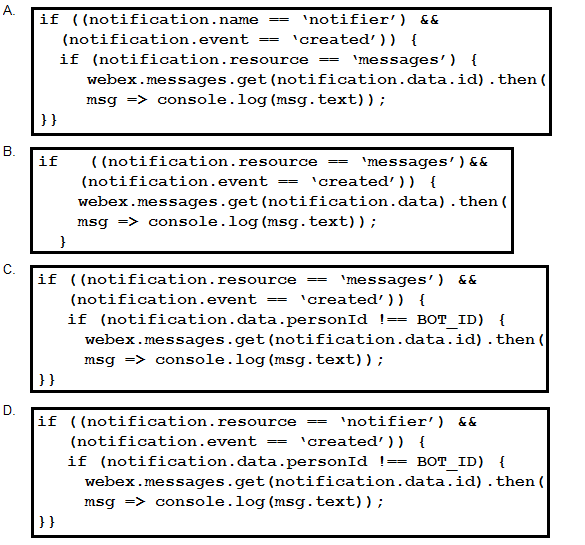

Refer to the exhibit. https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/300-920/page_13_img_1.jpg A webhook has been created so that an application is notified when users mention a bot in a Webex Teams space. The exhibit shows an example of a notification received by the application. Which code snippet correctly processes the JSON payload using the Webex Node.js SDK in order to print out messages that mention the bot? https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/300-920/page_14_img_1.jpg

Accepted Answer

B

Explanation: A Webex Webhook only supplies minimal data (messageId, personEmail, roomId). The bot must: 1. Ignore events it generated itself (data.personEmail === botEmail). 2. Use the Webex JS SDK messages.get(data.id) call to retrieve the full message. 3. Test whether the retrieved message.mentionedPeople array contains the bot’s own personId (webex.people.get('me')). 4. If mentioned, print message.text. Option B performs these exact four steps with the Webex Node.js SDK; none of the other snippets both fetch the full message and verify the mention correctly.

Question 10

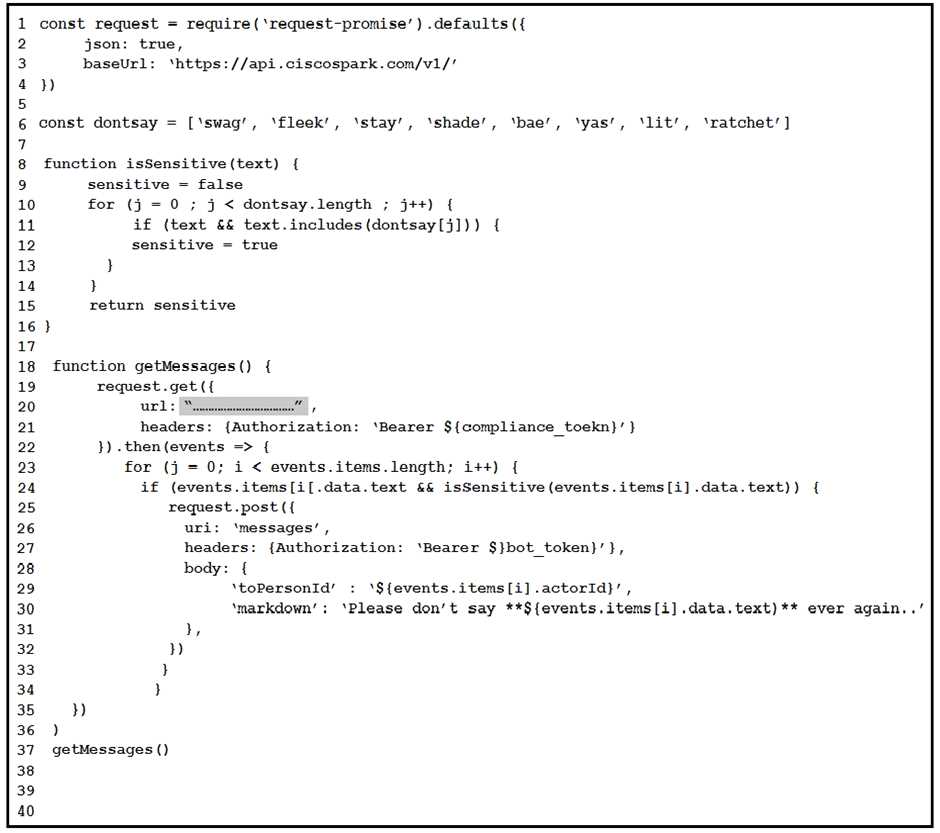

Refer to the exhibit. https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/300-920/page_56_img_1.jpg A company uses Webex Teams extensively for communications involving customers, and want to enforce a consistent messaging policy. Which code completes line 20 to send a notification when noncompliant messages are detected?

Accepted Answer

C

Explanation: The Webex Compliance Events API notifies a compliance officer when content is created, updated, or deleted. The documented request pattern is: GET /v1/events?resource=messages [&type=…]. Therefore the URI fragment that must replace line 20 so the code receives notices about non-compliant messages is “events?resource=messages”.

Question 11

Which user role implicitly has permission in the Events API to retrieve “message created” events from other users in the same organization?

Accepted Answer

A

Explanation: The Events API exposes message-level events (resource=messages, event=created) only to tokens that include the spark-compliance / admin:eventsread scope. Cisco explicitly states that this scope is granted automatically and exclusively to accounts that hold the Compliance Officer role, allowing those users to retrieve “message created” events for any user in their organization. Other administrator roles do not receive this implicit privilege and therefore cannot call the Events API for another user’s message traffic.

Question 12

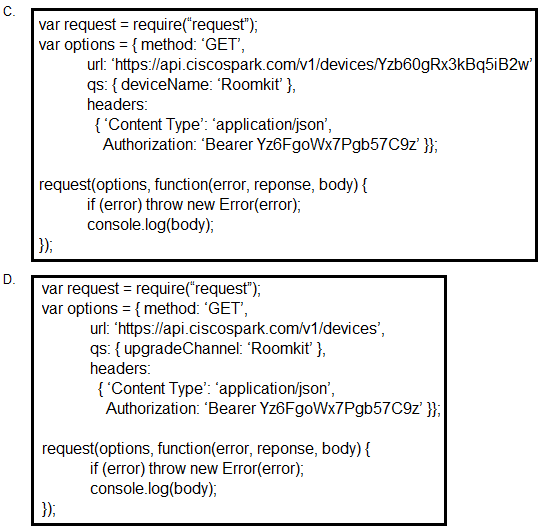

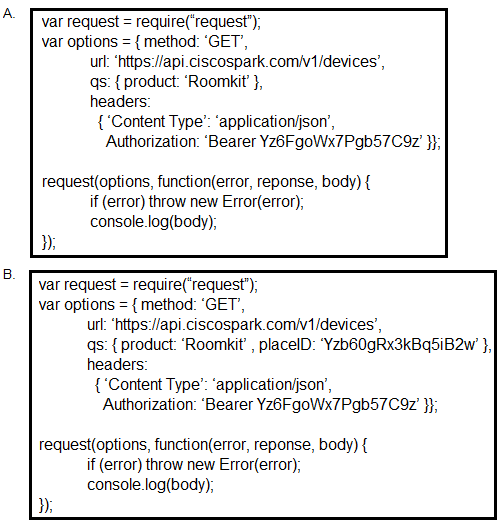

Which REST API request is used to list all the Webex Room Kit devices within a large organization so that a new custom In-Room Control can be deployed on all the devices? https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/300-920/page_5_img_1.jpg https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/300-920/page_6_img_1.jpg

Accepted Answer

A

Explanation: The Webex REST Devices API supports a List Devices operation (GET /v1/devices). Adding the query parameter product=Cisco Webex Room Kit filters the response to every Room Kit registered to the calling administrator’s organization, which is the precise prerequisite before pushing a new In-Room Control to all such endpoints.

Question 13

Which XML snippet does an admin use with a Webex Meetings XML API request to retrieve info on multiple users?

Accepted Answer

D

Explanation: The Webex Meetings XML API operation designed to return information on more than one user is LstsummaryUser. The request body is simply the LstsummaryUser element; when no filter elements are supplied it returns a paginated list of every user on the site (subject to listControl limits). GetUser is restricted to a single user and therefore cannot retrieve multiple users. The element names and pattern shown in options A, B are not valid per the schema, and option C omits the required identifying element for GetUser.

Question 14

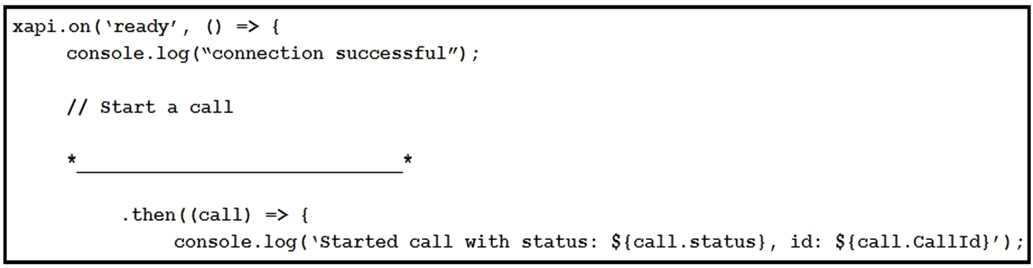

Refer to the exhibit. https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/300-920/page_53_img_1.jpg Assume that there is already a connection to a device for this jsxapi.code snippet. Which snippet completes the code so that the connected device makes a call to the user jdoe@example.com? https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/300-920/page_53_img_2.jpg

Accepted Answer

D

Explanation: In jsxapi, a call is placed by issuing the xCommand Dial command. The method is xapi.command('Dial', …) and the required argument key is “Number”. Using the exact capitalization mandated by the xAPI schema dials the specified URI on the device that is already connected.

Question 15

Which expression is a valid Webex Teams webhook filter?

Accepted Answer

C

Explanation: Webex webhooks accept one or more filter clauses in standard URL-query syntax. Individual clauses use the form key=value. When more than one clause is supplied, they must be concatenated with the ampersand (“&”) exactly as they would appear in a query string, for example: roomId= &mentionedPeople=me. Therefore the only option that follows the required key=value&key=value pattern is personEmail=person@example.com&roomId=abc123.
