Question 1

An engineer is implementing a highly secure multitier application in AWS that includes S3. RDS, and some additional private links. What is critical to keep the traffic safe?

Accepted Answer

B

Explanation: A highly secure multitier application in AWS that includes S3, RDS, and some additional private links requires specific routing and bucket policies to keep the traffic safe. The reasons are as follows: Specific routing policies are needed to ensure that the traffic between the tiers is routed through the private links, which provide secure and low-latency connectivity between AWS services and on- premises resources12. The private links can also prevent the exposure of the data and the application logic to the public internet12. Bucket policies are needed to control the access to the S3 buckets that store the application data34. Bucket policies can specify the conditions under which the requests are allowed or denied, such as the source IP address, the encryption status, the request time, etc.34. Bucket policies can also enforce encryption in transit and at rest for the data in S334. Reference := 1: AWS PrivateLink 2: AWS PrivateLink FAQs 3: Using Bucket Policies and User Policies 4: Bucket Policy Examples

Question 2

A cloud engineer is setting up a new set of nodes in the AWS EKS cluster to manage database
integration with Mongo Atlas. The engineer set up security to Mongo but now wants to ensure that
the nodes are also secure on the network side. Which feature in AWS should the engineer use?

Accepted Answer

B

Explanation: Security groups are a feature in AWS that allow you to control the inbound and outbound traffic to your instances. They act as a virtual firewall that can filter the traffic based on the source, destination, protocol, and port. You can assign one or more security groups to your instances, and each security group can have multiple rules. Security groups are stateful, meaning that they automatically allow the response traffic for any allowed inbound traffic, and vice versa. Security groups are essential for securing your nodes in the AWS EKS cluster, as they can prevent unauthorized access to your Mongo Atlas database or other resources. You can also use security groups to isolate your nodes from other instances in the same VPC or subnet, or to allow communication between nodes in different clusters or regions. Reference := AWS Security Groups Security Groups for Your VPC Security Groups for Your Amazon EC2 Instances Security Groups for Your Amazon EKS Cluster

Question 3

DRAG DROP
An engineer must configure a CLI add-on feature template in Cisco vManage for enhanced policy-
based routing (ePBR) for IPv4. These configurations were deleted:
• licensing config enable false
• licensing config privacy hostname true
• licensing config privacy version false
• licensing config utility utility-enable true
Drag and drop the steps from the left onto the order on the right to complete the configuration.
300-440 practice exam questions

Accepted Answer

Explanation: Step 1 = Click Configuration, select Templates, and then select Feature Templates. Step 2 = Click Add Template, select the device, and then click Select Template. Step 3 = Click CLI Add-On Template and enter the name and description. Step 4 = Paste the CLI configuration and then click Save. The process of configuring a CLI add-on feature template in Cisco vManage for enhanced policy- based routing (ePBR) for IPv4 involves several steps1234. Click Configuration, select Templates, and then select Feature Templates: This is the first step where you navigate to the Templates section in the Configuration menu of Cisco vManage1. Click Add Template, select the device, and then click Select Template: In this step, you add a new template for the device1. Click CLI Add-On Template and enter the name and description: After setting up the template, you select the CLI Add-On Template option, and then enter the name and description for the template1. Paste the CLI configuration and then click Save: Finally, you paste the CLI configuration into the template and save the changes1. Reference := CLI Add-On Feature Templates - Cisco Cisco Catalyst SD-WAN Systems and Interfaces Configuration Guide, Cisco IOS XE Catalyst SD-WAN Release 17.x - CLI Add-On Feature Templates Cisco SD-WAN vSmart CLI Template - NetworkLessons.com CLI Templates for Cisco XE SD-WAN Routers

Question 4

Refer to the exhibits. https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/300-440/page_10_img_1.jpg While troubleshooting, a network engineer discovers that the backup path fails between ASBR3 and ASBR4 for traffic between BGP AS6000 and BGP AS6500 when the connection between ASBR1 and ASBR2 goes down. The following configurations were performed on ASBR1: https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/300-440/page_10_img_2.jpg Which command is missing?

Accepted Answer

D

Explanation: The bgp advertise-best-external command is used to enable the advertisement of the best external path to internal BGP peers. This command is useful when there are multiple exit points from the local AS to other ASes, and the local AS wants to use the closest exit point for each destination. By default, BGP only advertises the best path to its peers, and the best path is usually the one with the lowest IGP metric to the next hop. However, this may not be the optimal path for traffic leaving the local AS, as it may result in suboptimal hot-potato routing or MED oscillations. The bgp advertise- best-external command allows BGP to advertise the best external path, which is the path with the lowest MED among the paths from different neighboring ASes, in addition to the best path. This way, the internal BGP peers can choose the best exit point based on the MED value, rather than the IGP metric. In this scenario, ASBR1 is configured to receive additional paths from ASBR2, which is a route reflector. ASBR2 receives two paths for the same prefix from AS6500, one from ASBR3 and one from ASBR4. ASBR2 selects the best path based on the IGP metric to the next hop, and advertises it to ASBR1. However, this path may not be the best external path, as it may have a higher MED value than the other path. If the connection between ASBR1 and ASBR2 goes down, ASBR1 will not have any backup path to reach AS6500, as it does not know the other path from ASBR4. To prevent this situation, ASBR1 should be configured with the bgp advertise-best-external command, so that it can receive the best external path from ASBR2, along with the best path. This way, ASBR1 will have a backup path to reach AS6500, in case the primary path fails. Reference := IP Routing: BGP Configuration Guide - BGP Additional Paths … - Cisco, BGP Additional Paths

Question 5

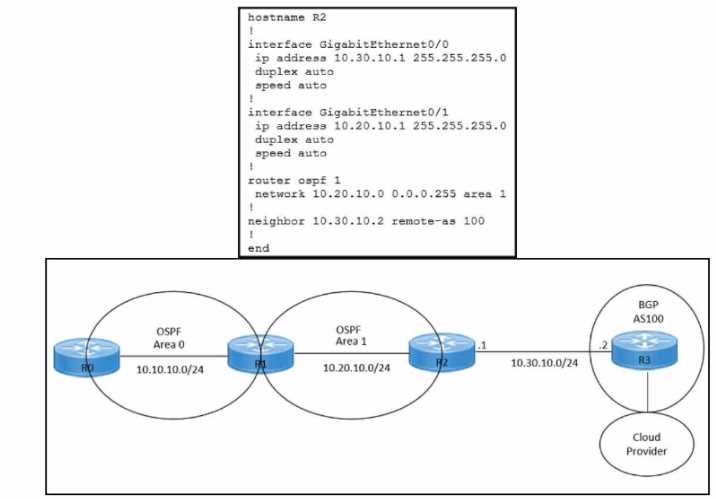

Refer to the exhibit. https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/300-440/page_12_img_1.jpg Refer to the exhibits. An engineer must redistribute IBGP routes into OSPF to connect an on-premises network to a cloud provider. Which command must be configured on router R2?

Accepted Answer

B

Explanation: This command redistributes the routes learned from BGP AS100 into OSPF Area 1, which allows router R2 to advertise those routes to router R1 and connect the on-premises network to the cloud provider. The other options are incorrect because they either redistribute the wrong routes or use the wrong syntax5 . I hope this helps you understand the question and the answer. If you have any other questions or requests, please let me know. I am always happy to help. Reference: 1: Learning Plan: Designing and Implementing Cloud Connectivity v1.0 (ENCC 300-440) Exam Prep 2: Designing and Implementing Cloud Connectivity (ENCC) v1.0 3: Cisco Multiprotocol Label Switching 4: Exploring Cisco Cloud OnRamp for Colocation 5: ENCC: Configuring IPsec VPN from Cisco IOS XE to AWS : [Deploying Cisco IOS VTI-Based Point-to-Point IPsec VPNs]

Question 6

An engineer must enable the OMP advertisement of BGP routes for a specific VRF instance on a Cisco IOS XE SD-WAN device. What should be configured after the global address-family ipv4 is configured?

Accepted Answer

B

Explanation: To enable the OMP advertisement of BGP routes for a specific VRF instance on a Cisco IOS XE SD- WAN device, the engineer must first configure the global address-family ipv4 and then enable bgp advertisement under the vrf definition. This will allow the device to advertise the BGP routes learned from the cloud provider to the OMP control plane, which will then distribute them to the other SD- WAN devices in the overlay network1 Reference := 1: Designing and Implementing Cloud Connectivity (ENCC) v1.0, Module 3: Implementing Cloud Connectivity, Lesson 3: Configuring IPsec VPN from Cisco IOS XE to AWS, Topic: Configuring BGP on the Cisco IOS XE Device, Page 3-24.

Question 7

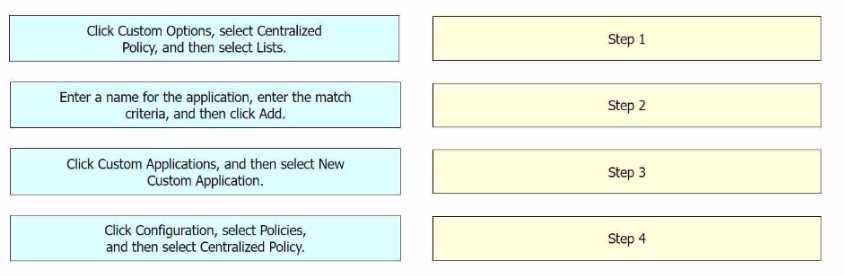

DRAG DROP An engineer signs in to Cisco vManage and needs to configure a custom application with a Cisco SD- WAN centralized policy. Drag and drop the steps from the left onto the order on the right to complete the configuration. https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/300-440/page_5_img_1.jpg

Accepted Answer

Explanation: To configure a custom application with Cisco SD-WAN centralized policy, you need to follow these steps25: Click Configuration, select Policies, and then select Centralized Policy. Click Custom Options, select Centralized Policy, and then select Lists. Click Custom Applications, and then select New Custom Application. Enter a name for the application, enter the match criteria, and then click Add. The process of configuring a custom application with a Cisco SD-WAN centralized policy using Cisco vManage involves several steps1. Click Configuration, select Policies, and then select Centralized Policy: This is the first step where you navigate to the Policies section in the Configuration menu of Cisco vManage1. Click Custom Options, select Centralized Policy, and then select Lists: In this step, you select the Custom Options, then select Centralized Policy, and finally select Lists1. Click Custom Applications, and then select New Custom Application: After setting up the Lists, you click on Custom Applications and then select New Custom Application1. Enter a name for the application, enter the match criteria, and then click Add: Finally, you enter a name for the application, specify the match criteria, and then click Add to complete the configuration1. Reference := Cisco Catalyst SD-WAN Policies Configuration Guide, Cisco IOS XE

Question 8

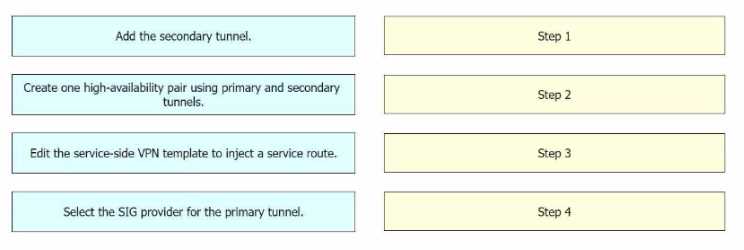

DRAG DROP
An engineer must configure cloud connectivity with Cisco Umbrella Secure Internet Gateway (SIG) in
active/backup mode. The engineer already configured the SIG Credentials and SIG Feature
Templates. Drag and drop the steps from the left onto the order on the right to complete the
configuration.
300-440 practice exam questions

Accepted Answer

Explanation: The configuration of cloud connectivity with Cisco Umbrella Secure Internet Gateway (SIG) in active/backup mode involves several steps. After configuring the SIG Credentials and SIG Feature Templates, the engineer must: Select the SIG provider for the primary tunnel: This is the first step in setting up the active/backup mode. The primary tunnel is the main connection path for the cloud connectivity. Add the secondary tunnel: The secondary tunnel serves as a backup in case the primary tunnel fails. It ensures that the cloud connectivity remains uninterrupted even if there are issues with the primary tunnel. Create one high-availability pair using primary and secondary tunnels: This step involves pairing the primary and secondary tunnels to create a high-availability pair. This ensures that the cloud connectivity will switch over to the secondary tunnel seamlessly if the primary tunnel fails. Edit the service-side VPN template to inject a service route: The final step involves modifying the VPN template on the service side to include a service route. This ensures that the traffic is correctly routed through the primary or secondary tunnel as needed. Reference := Designing and Implementing Cloud Connectivity (ENCC) v1.01 Learning Plan: Designing and Implementing Cloud Connectivity v1.0 (ENCC 300-440) Exam Prep2 Configure Umbrella SIG Tunnels for Active/Backup or Active/Active Scenarios - Cisco3 https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/300-440/page_22_img_1.jpg

Question 9

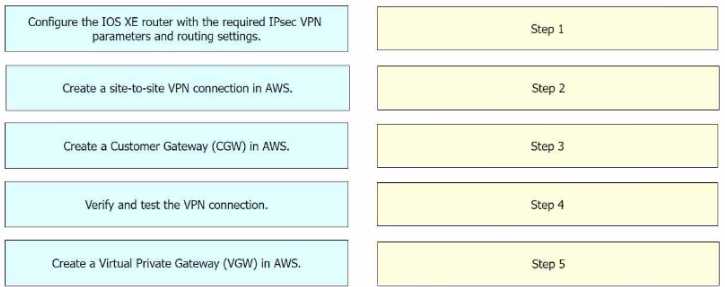

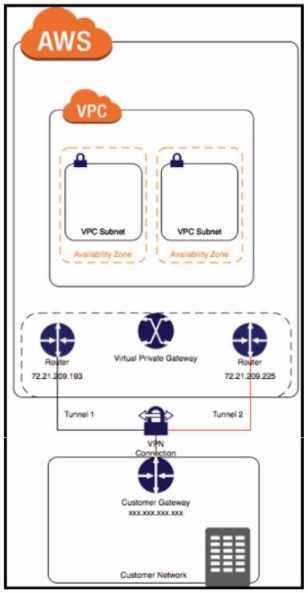

DRAG DROP Refer to the exhibit. https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/300-440/page_36_img_1.jpg Drag and drop the steps from the left onto the order on the right to configure a site-to-site VPN connection between an on-premises Cisco IOS XE router and Amazon Web Services (AWS). https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/300-440/page_37_img_1.jpg

Accepted Answer

Explanation: Step 1 = Create a Customer Gateway (CGW) in AWS. Step 2 = Create a Virtual Private Gateway (VGW) in AWS. Step 3 = Create a site-to-site VPN connection in AWS. Step 4 = Configure the IOS XE router with the required IPsec VPN parameters and routing settings. Step 5 = Verify and test the VPN connection. The process of configuring a site-to-site VPN connection between an on-premises Cisco IOS XE router and Amazon Web Services (AWS) involves several steps12. Create a Customer Gateway (CGW) in AWS: This is the first step where you define the public IP address of your on-premises Cisco IOS XE router in AWS1. Create a Virtual Private Gateway (VGW) in AWS: This involves creating a VGW and attaching it to the VPC in AWS1. Create a site-to-site VPN connection in AWS: After setting up the CGW and VGW, you then create a site-to-site VPN connection in AWS. This involves specifying the CGW, VGW, and the static IP prefixes for your on-premises network1. Configure the IOS XE router with the required IPsec VPN parameters and routing settings: After the AWS side is set up, you configure the on-premises Cisco IOS XE router with the required IPsec VPN parameters and routing settings2. Verify and test the VPN connection: Finally, you verify and test the VPN connection to ensure that it is working correctly12. Reference := Configure IOS-XE Site-to-Site VPN Connection to Amazon Web Services - Cisco Community SD-WAN Configuration Example: Site-to-site (LAN to LAN) IPSec between vEdge and Cisco IOS - Cisco Community

Question 10

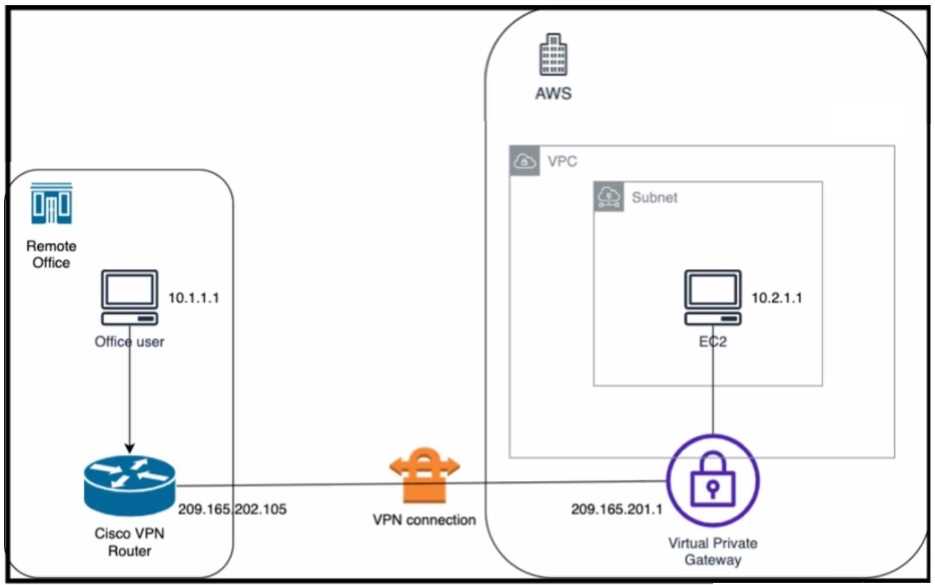

https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/300-440/page_32_img_1.jpg Refer to the exhibit. An engineer successfully brings up the site-to-site VPN tunnel between the remote office and the AWS virtual private gateway, and the site-to-site routing works correctly. However, the end-to-end ping between the office user PC and the AWS EC2 instance is not working. Which two actions diagnose the loss of connectivity? (Choose two.)

Accepted Answer

B, C

Explanation: The end-to-end ping between the office user PC and the AWS EC2 instance is not working because either the security group rules for the host VPC are blocking the ICMP traffic or the IPsec SA counters are showing errors or drops. To diagnose the loss of connectivity, the engineer should check both the security group rules and the IPsec SA counters. The network security group rules on the host VNET are not relevant because they apply to Azure, not AWS. The IPsec SA configuration on the Cisco VPN router and the AWS private virtual gateway are not likely to be the cause of the problem because the site-to-site VPN tunnel is already up and the site-to-site routing works correctly. Reference := Designing and Implementing Cloud Connectivity (ENCC, Track 1 of 5), Module 3: Configuring IPsec VPN from Cisco IOS XE to AWS, Lesson 3: Verify IPsec VPN Connectivity Security for VPNs with IPsec Configuration Guide, Cisco IOS XE, Chapter: IPsec VPN Overview, Section: IPsec Security Association AWS Documentation, User Guide for AWS VPN, Section: Security Groups for Your VPC
