Question 1

What is the MOST efficient way to distribute balanced daylight and diffused light with minimal glare throughout the changing seasons?

Accepted Answer

B

Explanation: Light pipes, also known as Tubular Daylighting Devices (TDDs), are the most effective solution for this scenario. They are specifically engineered to capture sunlight via a rooftop dome, transport it through a highly reflective tube (even around bends), and then spread it evenly into an interior space through a diffuser. This system design inherently separates the intense, direct source of light from the occupied space, resulting in well-distributed, diffused light with minimal glare. The collector domes are often designed to optimize light capture from various sun angles, providing more consistent illumination throughout the day and across different seasons compared to other methods.

Question 2

What does line "A" on the floor plan represent?

Accepted Answer

A

Explanation: In architectural and interior design drafting, line types have specific meanings. A dashed line, formally known as a "hidden line," is used to represent edges or objects that are not visible in the primary view. On a floor plan, which is a top-down view cut at approximately 4 feet (1.2m) above the finished floor, dashed lines indicate elements that are located above this cutting plane. Common examples include upper wall cabinets, ceiling soffits, beams, or the swing of a door that opens over a counter. The line labeled "A" correctly depicts an object hidden from the current view.

Question 3

What is the most sustainable light source for public spaces?

Accepted Answer

B

Explanation: Daylight is the most sustainable light source because it is a natural, renewable resource that consumes zero operational energy. The primary goal of sustainable lighting design is to maximize the use of daylight to reduce or eliminate the need for electric lighting during daytime hours. This approach significantly lowers a building's energy consumption, operational costs, and carbon footprint. While LED technology is the most sustainable electric option, it still requires energy and has environmental impacts from manufacturing and disposal. Daylight, as a source, has none of these operational or end-of-life drawbacks, making it the superior choice from a holistic sustainability perspective.

Question 4

A client is looking at toilet compartment options that provide ease of cleanability when it comes to mopping the floor. Which option would be the most suitable?

Accepted Answer

A

Explanation: Ceiling-hung toilet compartments are suspended from structural supports above the ceiling, leaving the floor area completely clear and unobstructed. This design is the most suitable for the client's requirement of easy floor cleanability. The absence of floor-anchored pilasters or supports eliminates obstacles, allowing for efficient and thorough mopping without the need to maneuver around hardware. This not only simplifies maintenance but also enhances overall sanitation by preventing the accumulation of dirt and moisture at floor-to-partition joints.

Question 5

After completing programming research for a private residence, what is the BEST tool for summarizing the spatial requirements?

Accepted Answer

A

Explanation: A criteria matrix is the most effective tool for summarizing spatial requirements gathered during the programming phase. This chart or spreadsheet systematically organizes complex information by listing all required spaces and detailing their specific criteria, such as approximate square footage, adjacency requirements, number of occupants, furniture and equipment needs, and desired qualitative characteristics (e.g., lighting, views, acoustics). It serves as a checklist and a direct translation of client needs into a data format that informs the subsequent schematic design phase.

Question 6

A criteria matrix helps designers achieve what PRIMARY goal?

Accepted Answer

D

Explanation: A criteria matrix is a fundamental tool used during the programming phase of an interior design project. Its primary purpose is to systematically organize, condense, and format all the client's requirements and project data into a single, easily referenced document. This matrix typically includes a list of all required spaces, their necessary square footage, critical adjacency relationships, and other specific criteria such as public/private access, lighting, acoustic needs, and equipment requirements. This organized information serves as the factual basis for subsequent design phases, ensuring all programmatic needs are addressed.

Question 7

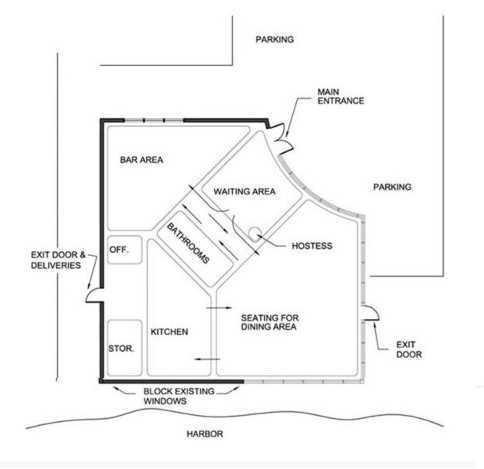

The graphic shown below represents a blocking diagram of a popular tourist restaurant relocating to a new location along the harbor. https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/CIDQ_IDFX_E/page_56_img_1.jpg What MAJOR factor in the design analysis of the diagram has the designer overlooked?

Accepted Answer

C

Explanation: The most significant oversight in the blocking diagram is the relationship between the kitchen and the bathrooms, which poses a major sanitation and health issue. Public health codes, which are paramount in food service design, mandate strict separation between food preparation areas and toilet facilities to prevent cross-contamination. In this diagram, the bathrooms are located off the main public waiting area, creating potential traffic conflicts where patrons moving to the restrooms cross paths with staff serving food. This proximity and shared circulation path between sanitation facilities and dining/kitchen operations is a critical health, safety, and welfare (HSW) concern that violates fundamental design principles for restaurants.

Question 8

A block plan differs from a bubble diagram in that it considers

Accepted Answer

B

Explanation: A block plan is a refinement of a bubble diagram, developed during the schematic design phase. The primary distinction is that a block plan translates the conceptual relationships from the bubble diagram into a scaled drawing that acknowledges the physical constraints of the building. It fits the required spaces, represented as blocks, within the actual building envelope (exterior walls, columns, core elements), allocating space more precisely than the abstract, non-scale bubble diagram.

Question 9

Which certification should the designer look for in the wood specifications if concerned about sustainable sourcing?

Accepted Answer

B

Explanation: The Forest Stewardship Council (FSC) is an independent, non-governmental organization that promotes the responsible management of the world's forests. FSC certification is the primary and most recognized standard for verifying that wood products are sourced from forests managed in an environmentally responsible, socially beneficial, and economically viable manner. It uses a "chain of custody" certification to track wood from the forest through the supply chain to the end user. Specifying FSC-certified wood ensures the designer's concern for sustainable sourcing is met and documented.

Question 10

Filing systems are specified by the designer and purchased by the client. Later, the manufacturer offers the designer a commission for using that product. What should they do?

Accepted Answer

B

Explanation: According to the professional codes of conduct that govern the interior design profession, a designer has a primary fiduciary duty to the client. Accepting a commission or "kickback" from a manufacturer creates a conflict of interest, or at the very least, the appearance of one. This action could compromise the designer's objectivity and imply that their specifications are influenced by personal gain rather than the client's best interests. Even though the offer was made after the client's purchase, accepting it is unethical. The most appropriate and professional response is to politely refuse the commission to maintain integrity and avoid any potential ethical violations.

Question 11

Which of the following includes the MOST basic elements of a complete means of egress system for an office suite on the second floor?

Accepted Answer

C

Explanation: According to building codes, a "means of egress" is a continuous and unobstructed path of travel from any point in a building to a public way. This system is fundamentally composed of three distinct parts: the exit access, the exit, and the exit discharge. The exit access is the portion that leads from any occupied space to an exit. The exit is the portion that is separated from other interior spaces to provide a protected path to the exit discharge (e.g., an enclosed stairwell). The exit discharge is the portion between the termination of an exit and a public way (e.g., a lobby or exterior court). These three components constitute the complete system.

Question 12

When would a designer use a bubble diagram in lieu of a stacking plan?

Accepted Answer

D

Explanation: A bubble diagram is a conceptual, freehand drawing used during the schematic design phase to translate written programmatic requirements into a two-dimensional plan view. Its primary purpose is to explore and visualize the required functional and spatial adjacencies between different programmed areas. This tool helps the designer and client understand how the project's requirements can be organized spatially on a floor before developing a more detailed, to-scale block or floor plan. A stacking plan, in contrast, is used to organize departments or major spaces vertically across multiple floors.

Question 13

A designer notes that the travel distance from the remote point in a fitness center is greater than the
maximum distance allowed by the building code. Which intervening spaces may be traveled through
to reduce travel distance?

Accepted Answer

D

Explanation: Building codes, such as the International Building Code (IBC), strictly regulate the means of egress to ensure a safe and unobstructed path for occupants during an emergency. The path is not permitted to pass through spaces that can be locked or are prone to obstruction. A reception area functions as a lobby and is considered a normal part of the circulation path. It is designed to be open and provides a discernible path to an exit, making it a permissible intervening space to include in the exit access travel distance calculation.

Question 14

When designing a wall with moldings and reveals, what type of detail should be drawn to convey the depth and profile of the reveals?

Accepted Answer

B

Explanation: A vertical section is a drawing that shows a view of an object as if it were cut vertically. When detailing a wall with moldings or reveals, a vertical section cut perpendicular to the wall's face is essential. This view clearly illustrates the cross-sectional shape (profile) and the depth (projection or recession) of these horizontal elements. It provides the critical dimensional information required for fabrication and installation, which cannot be accurately conveyed in plan or elevation views.

Question 15

How are the results of a Wyzenbeek test indicated on a textile label?

Accepted Answer

B

Explanation: The Wyzenbeek test is a standard industry method (ASTM D4157) used to measure the abrasion resistance of a textile, primarily for upholstery. The test involves a machine that rubs a cotton duck abradant or a wire screen back and forth across the surface of the test fabric. One complete back-and-forth motion is counted as a single "double rub." The test is concluded when the fabric shows noticeable wear, such as two yarn breaks. The resulting number of double rubs indicates the fabric's durability and suitability for different levels of use (e.g., residential, commercial, heavy-duty).
