Question 1

The primary benefit of implementing a supplier rating system for an organization is to

Accepted Answer

B

Explanation: A supplier rating system is a structured method for evaluating and measuring supplier performance against a set of predefined criteria, which typically include quality, delivery, cost, and service. The primary, overarching benefit of this system is to create a comprehensive, objective profile of each supplier. This profile allows the organization to clearly identify a supplier's specific strengths (competencies) and areas of poor performance (weaknesses). This holistic understanding is crucial for making informed strategic decisions regarding supplier selection, risk mitigation, business allocation, and targeted supplier development programs. The other options represent components or potential outcomes, but not the primary strategic benefit.

Question 2

In a failure mode and effects analysis (FXIEA). the focus should be on

Accepted Answer

D

Explanation: The primary objective of a Failure Mode and Effects Analysis (FMEA) is to proactively identify and mitigate potential risks in a product or process. Prioritization of these risks for action is a key step. This is accomplished using the Risk Priority Number (RPN), which is calculated as Severity × Occurrence × Detection. Items with the highest RPNs are typically addressed first. However, a critical rule in FMEA is that any failure mode with a high Severity rating (e.g., a 9 or 10, indicating a potential safety hazard or regulatory non-compliance) must be given special attention and considered for corrective action, regardless of its overall RPN. Therefore, the focus for implementing action is on items with either high RPNs or high Severity values.

Question 3

The number of runs required by a full-factorial design with three factors each at two levels is equal to

Accepted Answer

B

Explanation: A full-factorial design examines every possible combination of the levels across all factors. The total number of experimental runs is calculated by the formula L^k, where 'L' is the number of levels for each factor and 'k' is the number of factors. In this scenario, there are three factors (k=3), and each factor is at two levels (L=2). Therefore, the total number of runs required is 2^3 = 2 × 2 × 2 = 8. This design allows for the estimation of all main effects and all interaction effects among the three factors.

Question 4

Under a defect classification system, a nonconformance that could cause a product's usability to be substantially reduced would be classified as

Accepted Answer

C

Explanation: A major defect is defined as a nonconformance, other than critical, that is likely to result in failure or to materially reduce the usability of the product for its intended purpose. The phrase "substantially reduced" usability in the question directly corresponds to the definition of a major defect. This classification distinguishes it from a minor defect, which has little impact on usability, and a critical defect, which typically involves safety hazards or complete functional failure. Therefore, a nonconformance that substantially reduces a product's usability is classified as major.

Question 5

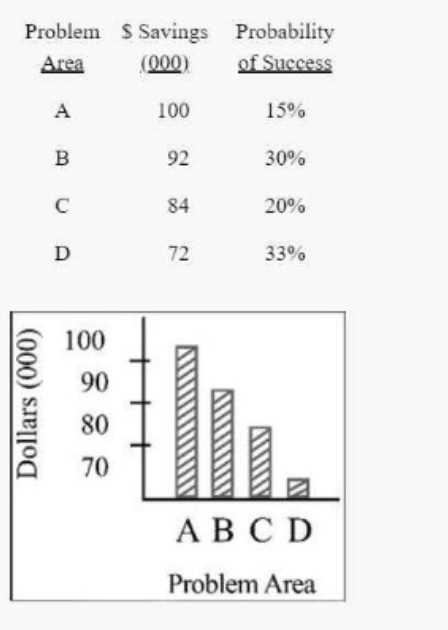

The following data sets were presented to top management. https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/ASQ_CQE/page_4_img_1.jpg Which problem area should be targeted for improvement first?

Accepted Answer

B

Explanation: When presenting data to top management for prioritization, the most critical metric is typically financial impact. While "Scratches" are the most frequent defect, the cause of the most customer complaints, and the source of the most downtime (Charts A, C, and D), Chart B clearly shows that "Dents" are the most costly problem by a significant margin (approximately $2500). The Pareto principle, or the 80/20 rule, is most effectively applied here by focusing on the "vital few" issues that cause the majority of the financial loss. Addressing the highest-cost defect ("Dents") will provide the greatest return on investment for the improvement effort, which is the primary concern for executive leadership.

Question 6

The holes in this drawing have what kind of tolerance? https://kxbjsyuhceggsyvxdkof.supabase.co/storage/v1/object/public/file-images/ASQ_CQE/page_47_img_1.jpg The holes in this drawing have what kind of tolerance?

Accepted Answer

B

Explanation: The dimension for the hole is specified as "Ø.500 ±.005". The "±" symbol indicates a bilateral tolerance. This means the allowable variation is distributed equally in both positive and negative directions from the nominal size of 0.500 inches. The upper specification limit is 0.500 + 0.005 = 0.505 inches, and the lower specification limit is 0.500 - 0.005 = 0.495 inches. The total tolerance zone is 0.010 inches, centered on the nominal dimension. This method of expressing tolerance is a fundamental concept in engineering drawings.

Question 7

A process capability analysis can best be used to

Accepted Answer

B

Explanation: Process capability analysis is a statistical tool used to assess the ability of a process to produce output within specified limits. It yields quantitative indices like Cp and Cpk, which measure process potential and performance. A primary and highly effective use of these indices is to provide an objective, data-driven basis for comparing the performance of different processes, alternative manufacturing lines, or competing pieces of equipment. By calculating and comparing the capability indices for each alternative under consideration, engineers can select the option that is most likely to consistently produce conforming products, thereby optimizing resource allocation and minimizing future quality issues.

Question 8

A failure node and effects analysis (FMEA) should be classified in what cost of quality category?

Accepted Answer

B

Explanation: Failure Mode and Effects Analysis (FMEA) is a systematic, proactive methodology used to identify and evaluate potential failures in a design or process. The primary objective of an FMEA is to determine actions that can eliminate or reduce the likelihood of these potential failures occurring. Since the costs associated with conducting an FMEA are incurred to prevent defects and non-conformances before they happen, they are correctly classified as Prevention Costs within the Cost of Quality (CoQ) framework. This aligns with the definition of prevention costs, which are investments made to keep failure and appraisal costs to a minimum.

Question 9

If a value assigned to a unit is non-numerical. it is described as

Accepted Answer

D

Explanation: Qualitative data, often referred to as attribute data in quality control, describes characteristics or qualities that are non-numerical. This type of data is used for classification and categorization based on observation rather than measurement. For example, classifying a product as "conforming" or "nonconforming," identifying a surface finish as "smooth" or "rough," or noting the color of an item are all instances of assigning a qualitative, non-numerical value. It answers questions of "what kind" or "which category" an item belongs to.

Question 10

Which of the following tools can be used to communicate performance data in time sequence?

Accepted Answer

C

Explanation: A control chart is a fundamental tool in statistical process control (SPC) specifically designed to monitor process performance over time. It plots data points in a time-ordered sequence, allowing for the analysis of trends, patterns, and process stability. The chart includes a center line representing the process average and upper and lower control limits. By plotting data chronologically, it helps distinguish between common cause variation (inherent to the process) and special cause variation (indicating a specific, identifiable problem), making it the ideal tool for communicating performance data in a time sequence.

Question 11

Registration to the ISO 9001 standard requires which of the following types of audit?

Accepted Answer

D

Explanation: Registration to the ISO 9001 standard requires a formal assessment by an independent, accredited organization, commonly known as a registrar or certification body. This type of audit is defined as a third-party audit. The "third party" is an external organization that is impartial and independent of the organization being audited (the first party) and its customers (the second party). The purpose of this audit is to provide an objective evaluation of the quality management system's conformity to the ISO 9001 requirements, leading to official certification or registration upon successful completion.

Question 12

A system was designed with 3 capacitors. When the system is first activated all capacitors are
operating. The system continues to operate as long as at least 1 capacitor is operating. This is an
example of

Accepted Answer

C

Explanation: The scenario describes a system with multiple, identical components (capacitors) where the system's function is maintained as long as at least one component is operational. This configuration is the definition of a parallel system. Because the question states that "all capacitors are operating" when the system is first activated, it specifies an active parallel system, where all redundant components are energized and share the load simultaneously. This design uses redundancy to enhance the overall system reliability.

Question 13

A graph of a data set, composed of a series of rectangles, each proportional in width to the range of
values in a class and proportional in height to the number of items or fraction of items falling in these
classes, is called which of the following?

Accepted Answer

A

Explanation: The question provides the precise definition of a histogram. A histogram is a graphical tool used to represent the frequency distribution of a set of continuous or discrete data. It is constructed by dividing the range of data into a series of intervals (classes or bins) of equal width. For each interval, a rectangle is drawn. The height of the rectangle is proportional to the frequency—the number of observations falling into that class. This visual representation helps in understanding the data's underlying distribution, central tendency, and spread.

Question 14

Which of the following tools is an example of a noncontact measurement tool?

Accepted Answer

A

Explanation: A laser scanner is a noncontact measurement tool. It operates by projecting a laser line or point onto a surface and capturing its reflection with a sensor to determine the object's three-dimensional geometry. This process, known as optical triangulation or time-of-flight, allows for the collection of a dense cloud of data points representing the object's surface without any physical contact. This makes it ideal for measuring complex, delicate, or easily deformable parts where traditional contact methods would be impractical or could cause damage.

Question 15

When subgroups are selected in a way that minimizes the opportunity for variation within a subgroup and maximizes the opportunity to detect variation between subgroups, this subgrouping is known as

Accepted Answer

D

Explanation: The method described is the definition of a rational subgroup. In Statistical Process Control (SPC), rational subgroups are formed by collecting samples over a very short time, under conditions that are as consistent as possible. This minimizes the variation within the subgroup, ensuring it represents only the inherent, common-cause variation of the process. The subgroups themselves are then taken at spaced intervals (e.g., hourly). This strategy maximizes the chance of detecting variation between subgroups, which would indicate the presence of a special (or assignable) cause, making the control chart a sensitive tool for process monitoring.
