Free Arcitura Education S90.05 Actual Exam Questions

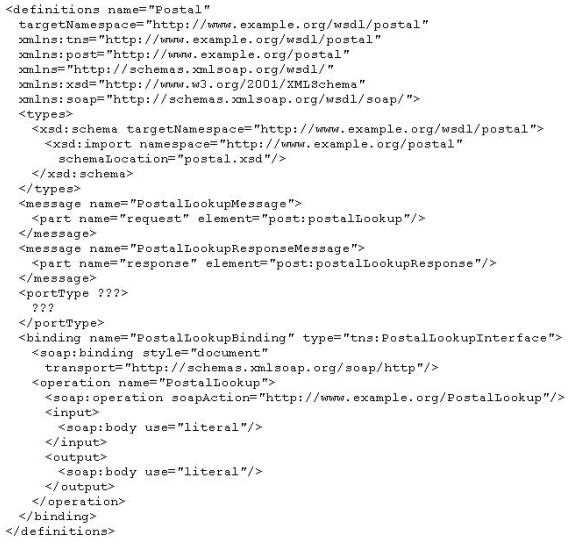

A natural disaster has damaged the server that contained your service contracts. Many files on the
server have been lost, but you have been able to partially recover some files using special disk
recovery tools. One of the WSDL definitions for a Postal service is mostly intact, except for the
portType element, which has only been partially recovered.
The recovered WSDL definition looks as follows:

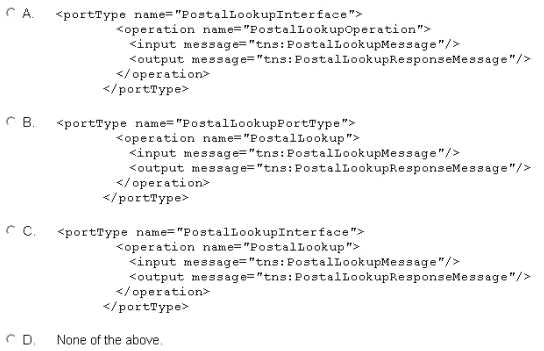

The "???" symbols indicate where data is missing. Your task is to reconstruct the "portType" element
based on clues found in the rest of the WSDL document. Which of the following is correct?

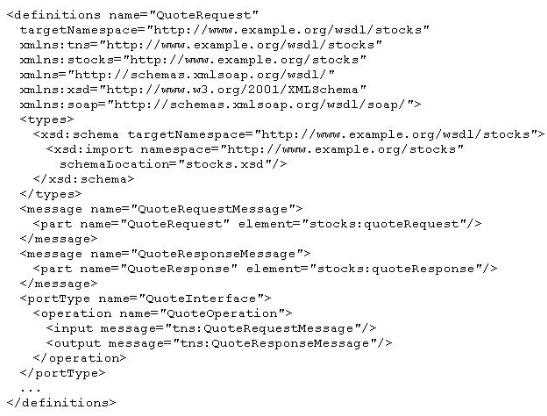

You are building the Quote Request service that allows other services to request the current value of
a stock. You have developed the following WSDL definition for this service:

The "message" element named "QuoteRequestMessage" represents the request message sent to the
service and the "message" element named "QuoteResponseMessage" represents the response

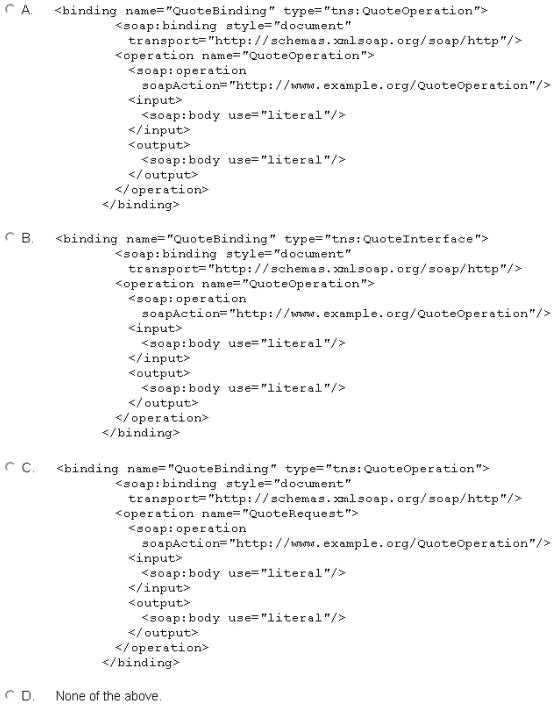

message that the service responds with. Your next task is to define the concrete description for this
WSDL definition and you start with the "binding" element. Which of the following represents the
correct "binding" element for this WSDL definition?

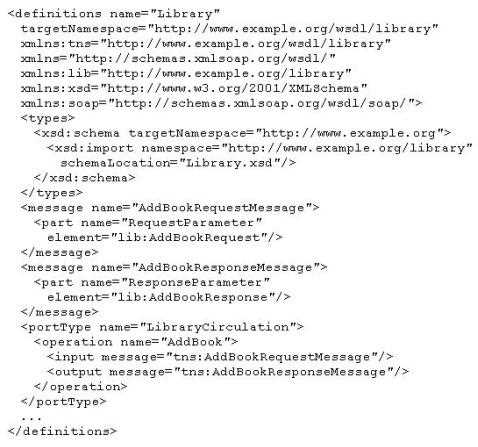

You have developed a Library service that provides an "AddBook" operation that is able to add a
book record to a library system. This operation accepts a message based on an "AddBookRequest"
element that contains book record details, such as its author and title. It then responds with a
message based on the "AddBookResponse" element that acknowledges that the book was
successfully added. Below is the current WSDL definition:

You are asked to extend this WSDL definition in order to add a new "DeleteBook" operation that is
able to receive a request message based on the "DeleteBookRequest" element and reply with a
response message based on the "DeleteBookResponse" element. Which of the following describes
the minimum number of message, operation and "portType" elements that will need to be added in
order to fulfill these requirements?

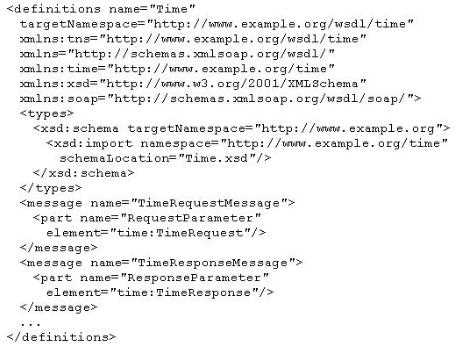

You are working on a new Time service that will be able to return the current time, down to six
microseconds. You have begun by creating a schema and the beginnings of a WSDL definition, as
follows:

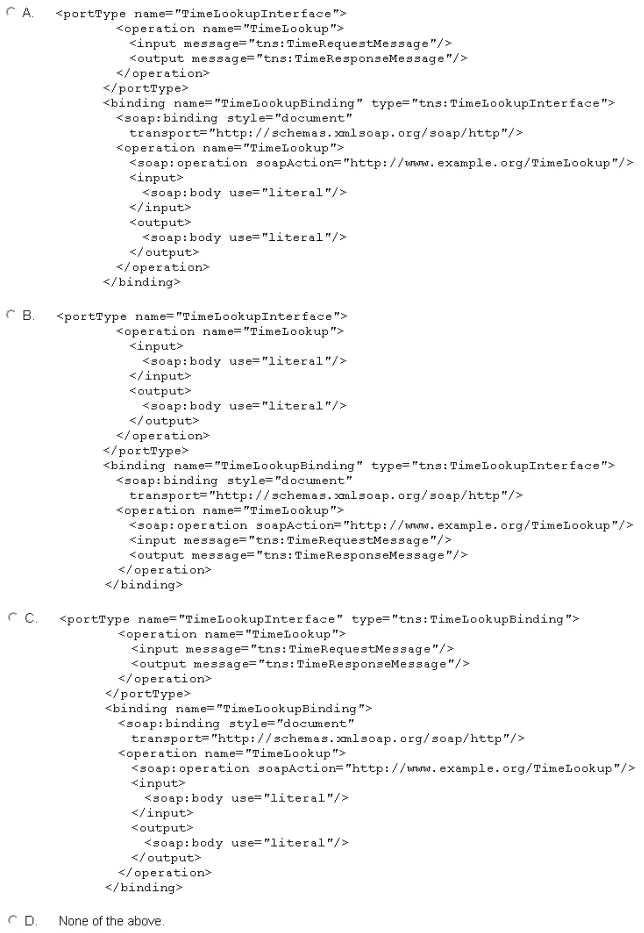

Your next task is to define the "portType" and "binding" elements. Which of the following fragments
contain the correct "portType" and "binding" elements for this WSDL definition?

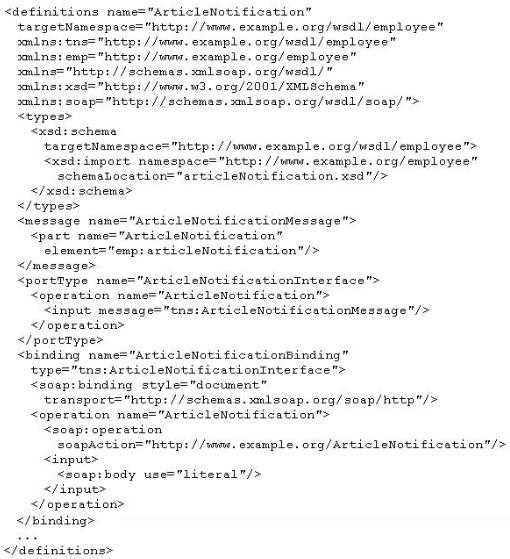

You have developed the following WSDL definition for the Article Notification service that needs to
be able to notify employees when a new article has been posted to the company's internal intranet
Web site:

The service has an "ArticleNotification" operation that receives a request message containing the
article information. The receipt of this request message triggers the issuance of a notification to

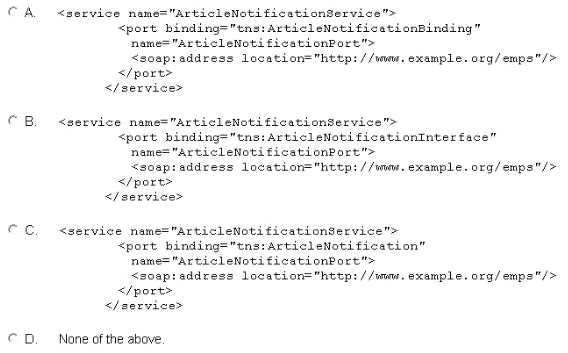

employees. This operation does not issue a response message. Your next task is to define the
concrete description for this WSDL definition. You have already completed the "binding" element
and you now need to add the "service" element. Which of the following represents the correct
"service" element for this WSDL definition?

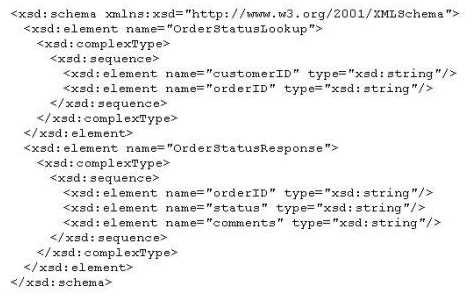

Your company has developed a service that allows your customers to check the status of an order.
The schema for the service is shown here:

A new customer plans to use your service, but they want to test it first. They have asked for two
sample XML documents that show typical input and output message content. Which of the following
pairs of XML elements will validate with the schema shown above?

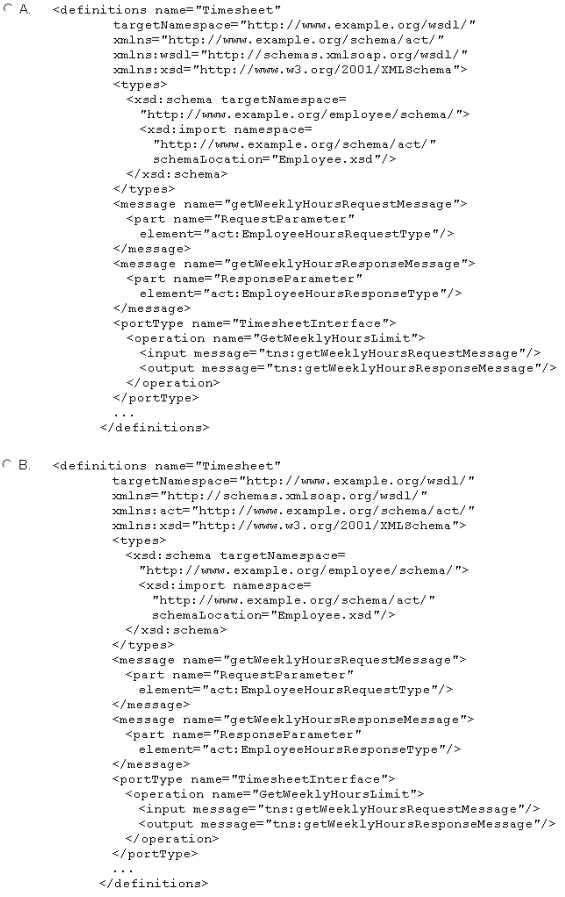

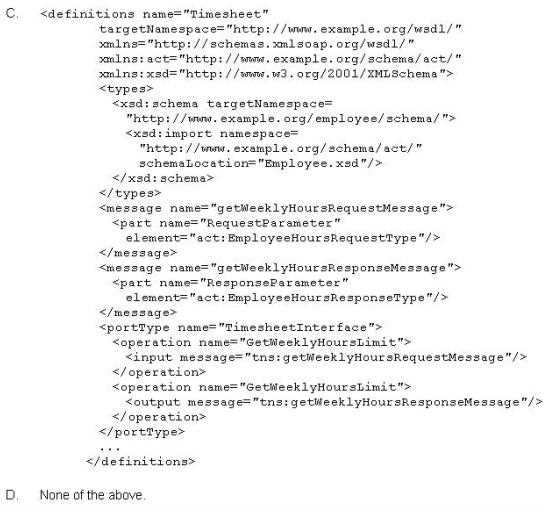

You are asked to build a newTimesheet service that needs to provide centralized access to timesheet-
related data access functions. Because the service delivery project team follows a "contract-first"
approach when building any service, you and your group of developers are asked to create a WSDL
definition that will need to import an existing "Employee.xsd" schem
a. Furthermore, in order to comply with established design standards and conventions, you are given
the following instructions as to how the WSDL definition must be designed:
•
It
must
contain
a
"message"
element
for
the
request
message
with
the
name
"getWeeklyHoursRequestMessage". The "message" element must contain a "part" element that
references the "EmployeeHoursRequestType" element defined in the imported XML schema.
•
It
must
contain
a
"message"
element
for
the
response
message
with
the
name
"getWeeklyHoursResponseMessage".The "message" element must contain a "part" element that
references the "EmployeeHoursResponseType" element defined in the imported XML schema.
• It must contain a "portType" element called Timesheetlnterface" that contains an "operation"
element called "GetWeeklyHoursLimit", an "input" element referencing the request message and an
"output" element referencing the response message.Three of your junior developers take on this
assignment. At the end of the day, each developer presents you with a different WSDL definition.
Which of the following is a correctly designed WSDL definition that also complies with the above
instructions?

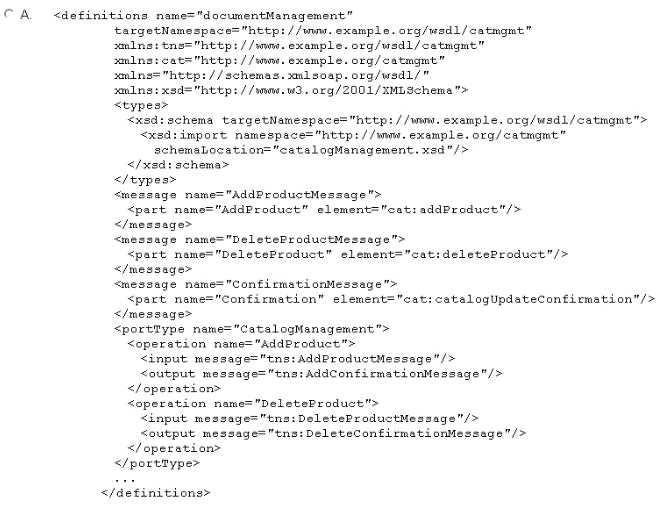

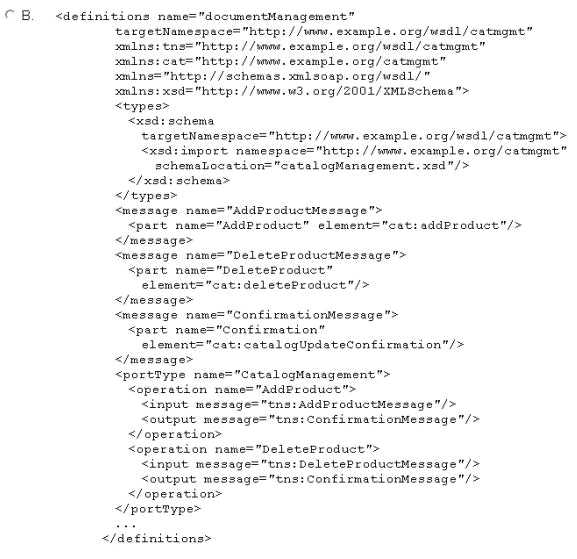

You are developing the Document Management service that will be providing product catalog record
management operations. Your first task is to create operations for the addition and deletion of
product records from the catalog. The first operation needs to be able to add a product record and
needs to receive a message based on the "addProduct" element. The second operation needs to be
able to delete a product record and needs to receive a message based on the "deleteProduct"
element. Both of these operations need to reply with a response message based on the same

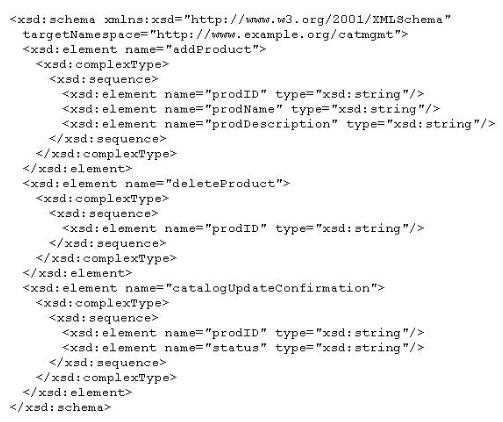

"catalogUpdateConfirmation" element-So far, you have developed the following schema (called
"catalogManagement.xsd"), which declares the three needed elements:

Which of the following shows a WSDL definition that correctly incorporates this schema and fulfills
the requirements for this service?

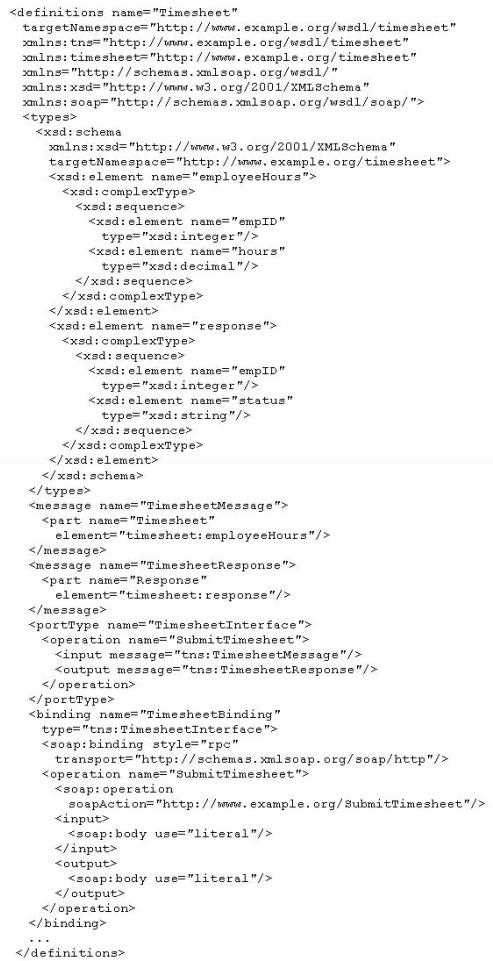

Your developer is asked to build a Timesheet service that is able to receive timesheet submissions for
an internal payroll system. Service consumers need to be able to send this service request message
based on a root "employeeHours" element within the SOAP message body. The "employeeHourse"
element will contain "ernpID" and "hours" child elements. Furthermore, the service needs to return
a message based on a "response" element that contains "empID" and "status" child elements. Your
developer comes to you with the following WSDL definition:

The only revision you suggest is that the value of the "style" attribute of the "soap: binding" element
be changed to "document" instead of "rpc". Why?

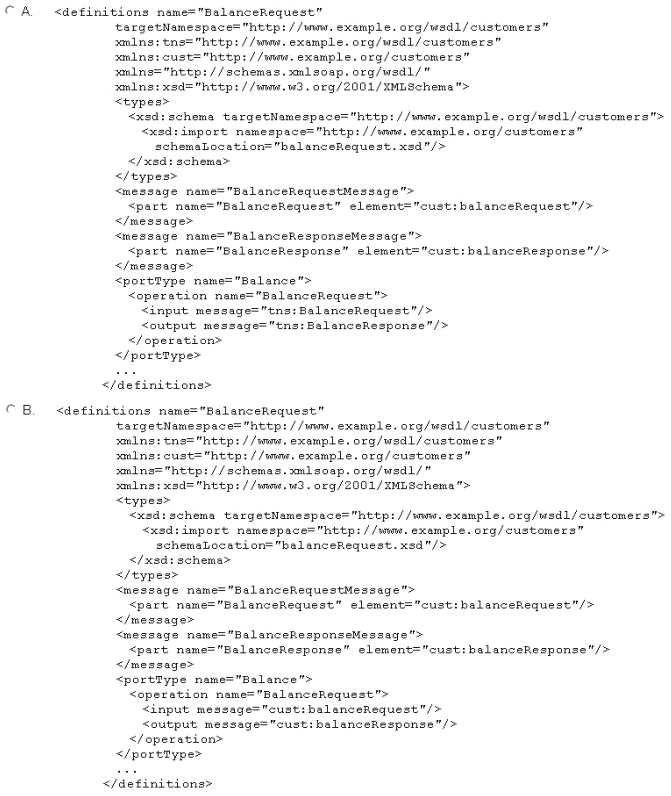

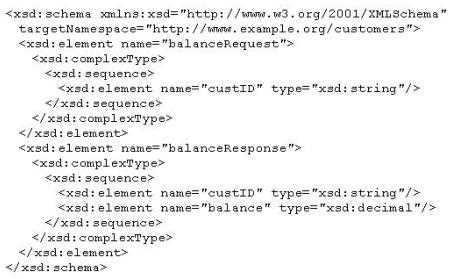

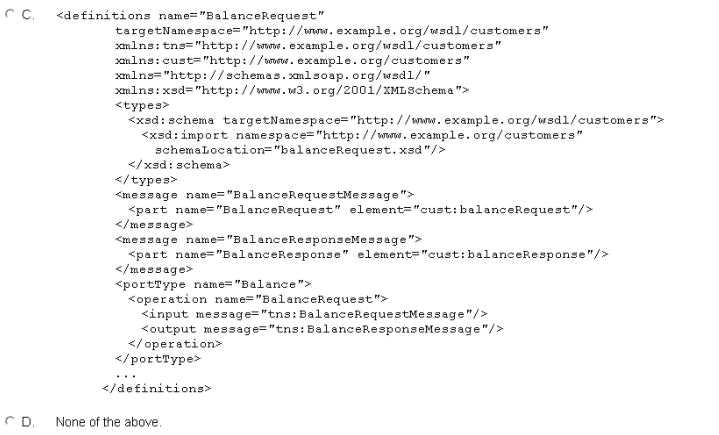

You are building the Balance Request service that allows customers to request their current account
balance. You have developed the following schema (called "balanceRequest.xsd") to define the
elements used in the messages exchanged by the service:

The "balanceRequest" element is to be used as the basis of the request message sent by a customer
to the service. The "balanceResponse" element is to be used as the basis of the response message
sent out by the service. Which of the following WSDL definitions correctly describes this service?
